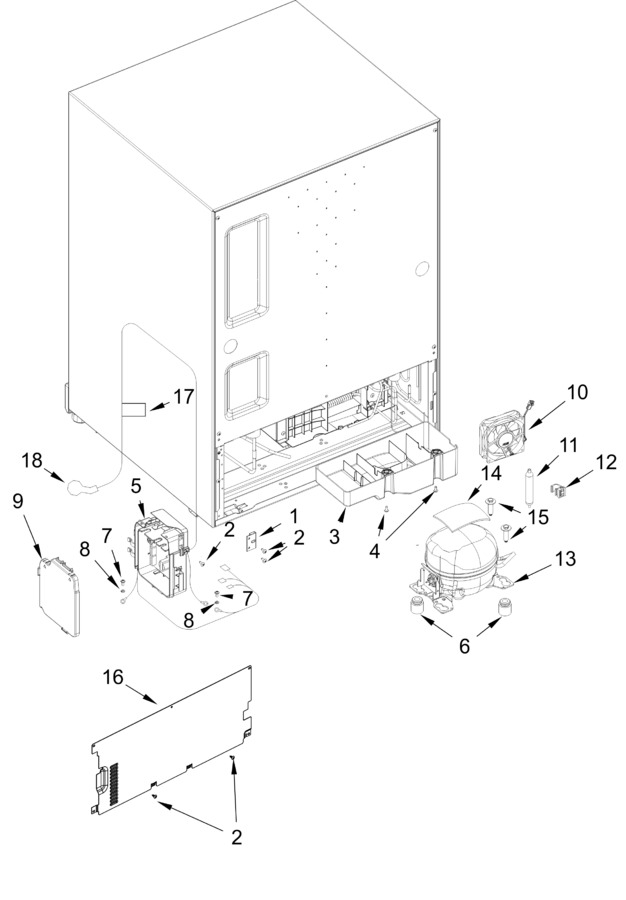

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11845466		Assembly, Pcb Box		Appelez-nous	-
6	W11360596		Mount, Compressor		Appelez-nous	-
7	4344826		Screw				$ 15.03
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 73.67
10	W11360536		Assembly, Fan Motor				$ 194.29
11	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11835079		Compressor   (Replaces: W11835076)		Appelez-nous	-
14	W11596025		Sound Pad, Compressor   (Replaces: W11360595)				$ 34.44
15	W11375771		Bolt		Appelez-nous	-
16	W11568821		Panel, Cover		Appelez-nous	-
17	W11618463		Assembly, Power Cord			Immediately	$ 119.22
18	W11774698		Cord, Power   (Replaces: W11740249)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI8476905DFD3F5BB7855417E74F4EB6BF		52 Grams (r600a)		Appelez-nous	-
