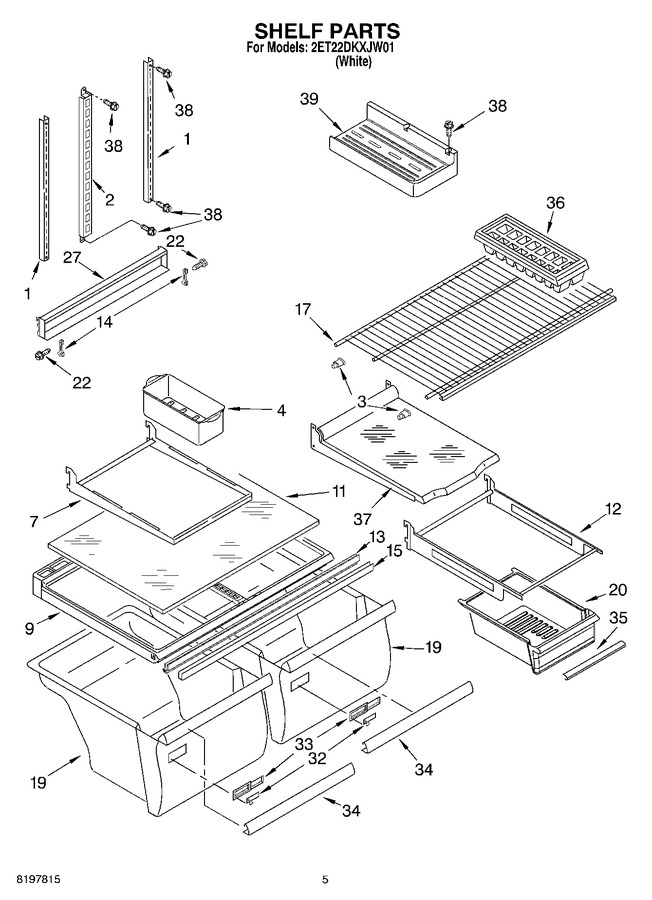

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	W10136387A		Egg Bin   (Replaces: 2216624)				$ 19.54
7	2174447		Frame Assembly, Shelf (2)				$ 79.10
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 279.10
11	WP2176225		Glass, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2205162		Frame Assembly, Meat Shelf				$ 83.71
13	2172684		Gasket, Crisper Cover		Appelez-nous	-
14	2169608		Hook, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
17	2184667		Shelf, Freezer		Appelez-nous	-
19	W10854037		Pan, Crisper Includes 32,33,34.   (Replaces: 2218130)			Immediately	$ 179.19
20	WP2218132K		Pan, Meat Includes No.35.   (Replaces: 2218132)			Immediately	$ 171.43
22	489419		Screw		Appelez-nous	-
27	2176241		Track Assembly, Shelf		Appelez-nous	-
32	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
33	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.81
34	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 86.67
35	2176357		Trim, Meat Pan				$ 33.74
36	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
37	2195349		Shelf Assembly, Spillguard		Appelez-nous	-
38	WP489478		Screw   (Replaces: 489478)				$ 8.18
39	2212770		Shelf, Ice Tray				$ 65.17
