SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door

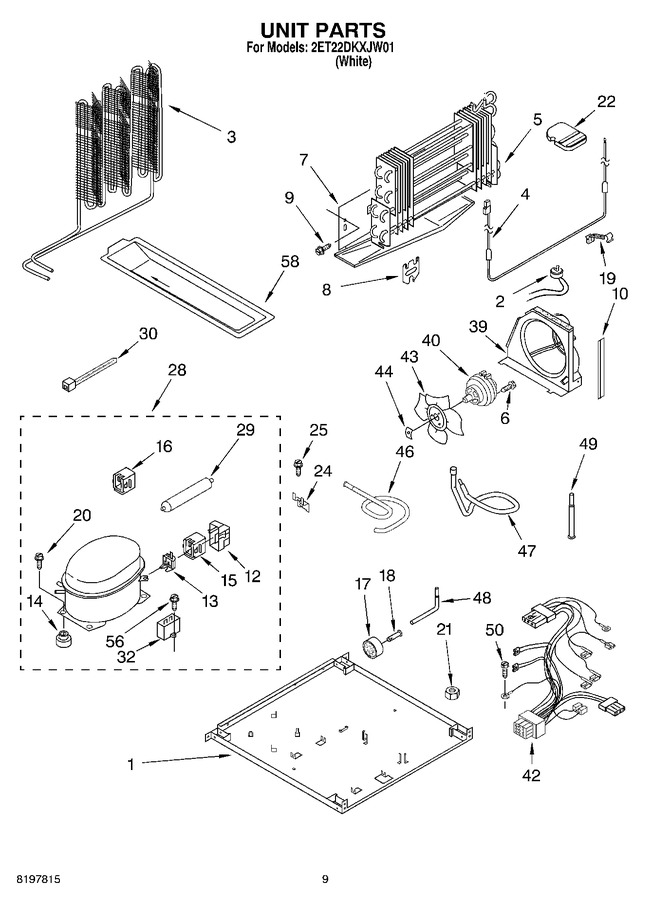

05 - Unit


06 - Freezer Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205340		Plate, Unit Mounting		Appelez-nous	-
2	WP2182381		Defrost Bimetal   (Replaces: 2182381)				$ 113.54
3	2212599		Condenser		Appelez-nous	-
4	2166872		Heater, Defrost		Appelez-nous	-
5	2195390		Evaporator Assy.				$ 228.01
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 6.80
7	2172620		Drain Pan		Appelez-nous	-
8	2176301		Bracket, Heater				$ 6.37
9	WP489478		Screw   (Replaces: 489478)				$ 7.36
10	2163780		Extension, Air Baffle		Appelez-nous	-
12	WP61002138		Cover   (Replaces: 4387959)				$ 8.29
13	2169410		Overload   (Replaces: 4387962)				$ 94.76
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.01
15	WP2262184		Relay (see Overload)   (Replaces: 4387957)				$ 111.11
16	2204308		Start-device Combination (start Relay And Overload For Production Compressor Only)		Appelez-nous	-
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 28.85
18	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 17.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.01
21	N/A		Nut (not Serviced)		Appelez-nous	-
22	2201185		Support Block				$ 8.21
24	2166683		Clip		Appelez-nous	-
25	W11693756		Screw   (Replaces: 488687)			Immediately	$ 13.28
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit				$ 81.59
28	2187203		Compressor (includes Items 12,13, 14, 15, 16, 20, 29, 32 & 56) (also Order		Appelez-nous	-
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 51.42
29	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 51.42
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.47
32	WP2201147		Capacitor   (Replaces: 4387874)				$ 121.88
39	2188262		Air Baffle		Appelez-nous	-
40	8201703		Motor, Condenser   (Replaces: 2198747)				$ 334.53
42	2187410		Wire Assy. Unit		Appelez-nous	-
43	2190685		Fan, Blade				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.59
46	2205533		Tube, Discharge		Appelez-nous	-
47	2214924		Tube, Suction				$ 92.88
48	2154109		Tube, Process				$ 68.63
49	2212603		Tube, Transition		Appelez-nous	-
50	WP3400504		Screw   (Replaces: 3400504)				$ 6.80
56	3400518		Screw				$ 12.27
58	876764		Valve, Access(3/16``)			Immediately	$ 86.33
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 123.53
58	2210451		Evap. Tray				$ 66.37
58	978026		Valve, Access (5/16``)			Immediately	$ 121.04

    View Diagram in Separate Window       Print Part List
