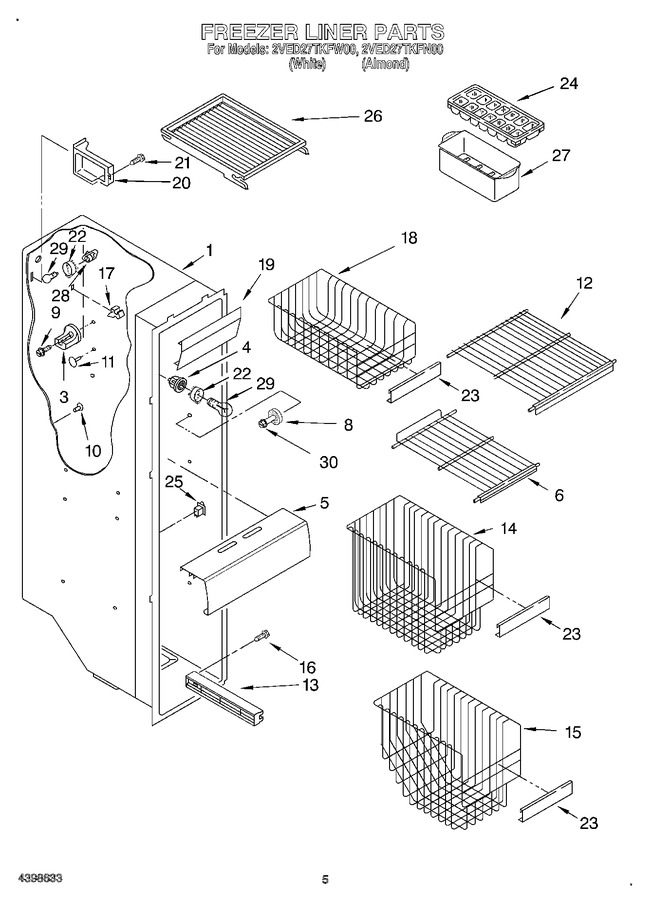

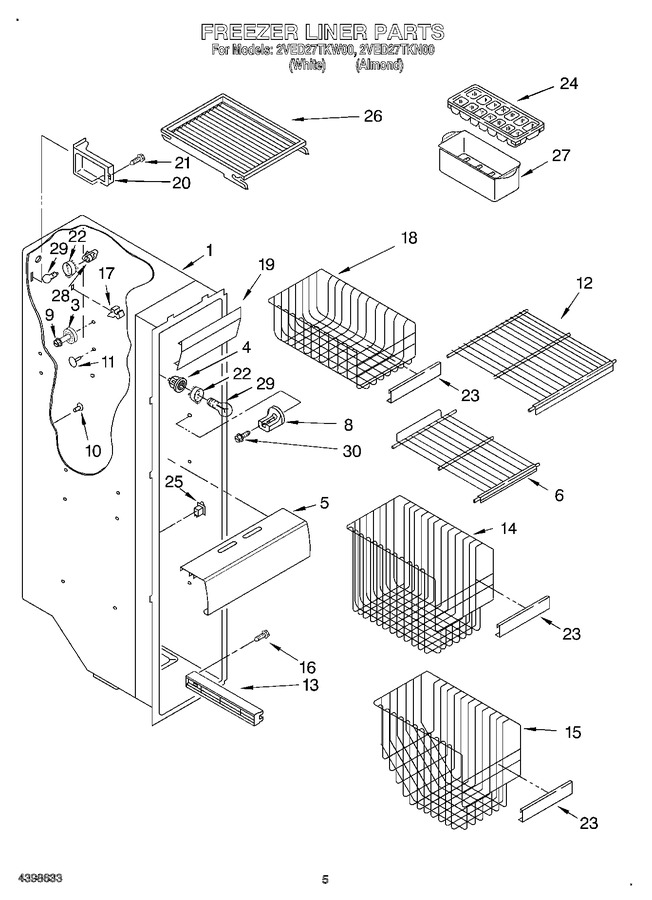

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	2196207		Stud, Rear				$ 7.61
4	WPW10119935		Light Socket   (Replaces: 2155597)				$ 106.16
5	2198479		Light Lens		Appelez-nous	-
6	WP2174267		Shelf   (Replaces: 2174267)				$ 93.35
8	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
9	W10142289		Screw   (Replaces: 3400893)				$ 9.61
10	2176134		Grommet (8)				$ 5.83
11	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
12	2198478		Shelf		Appelez-nous	-
13	2181759		Shelf Track (left Side)		Appelez-nous	-
13	2181760		Shelf Track (right Side)		Appelez-nous	-
14	2181765		Basket, Square		Appelez-nous	-
15	2181764		Basket, Sloped		Appelez-nous	-
16	W10759522		Screw (6)   (Replaces: 486298)				$ 8.24
17	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
18	2181763		Basket, Shallow		Appelez-nous	-
19	2171705		Lens, Light				$ 94.68
20	2160912		Cover, Wiring		Appelez-nous	-
21	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
22	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 86.74
23	2195905		Trim, Basket				$ 38.60
24	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
25	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
26	2171714		Shelf, Top Compartment		Appelez-nous	-
27	W10136387A		Ice Bin   (Replaces: 2164333)				$ 19.54
28	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
29	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
30	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
