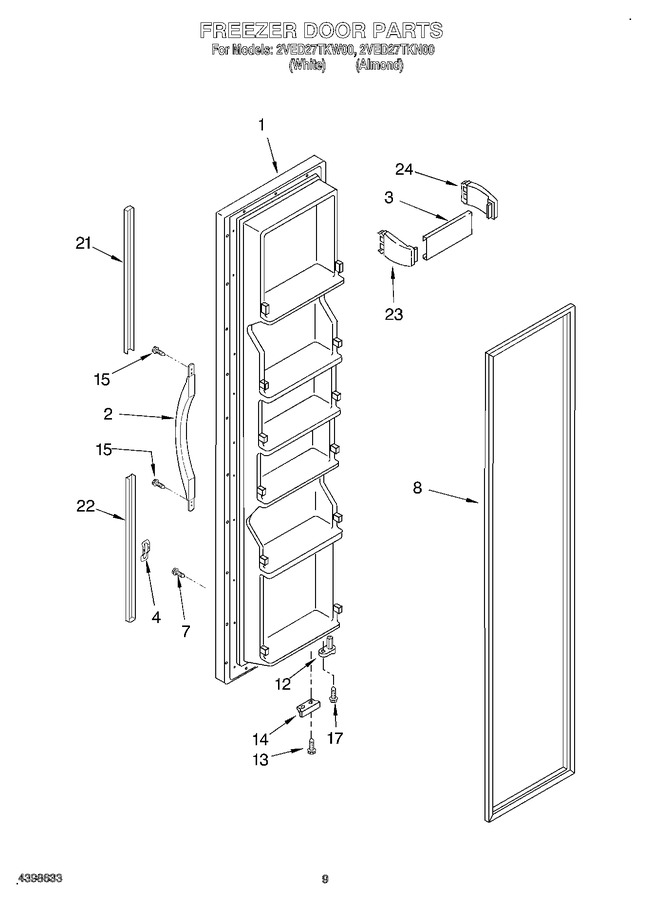

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2186422N | Freezer Door (includes No.8) (almond) |
|
- | |||||
| 1 | 2186422W | Freezer Door (includes No.8) (white) |
|
- | |||||
| 2 | 2186649N | Handle (almond) |
|
- | |||||
| 2 | 2186649W | Handle (white) |
|
$ 70.49 | |||||
| 3 | 2195927 | Trim, Shelf (6) |
|
- | |||||
| 4 | WP2195327 | Clip (4) (Replaces: 2195327) |
|
$ 7.77 | |||||
| 5 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 8.15 | |||||
| 7 | WP3400852 | Screw (4) (Replaces: 3400852) |
|
$ 10.33 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (service) |
|
$ 325.70 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 7.20 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 15 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 7.30 | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 21 | 2194973W | Trim, Door-top (white) |
|
$ 5.65 | |||||
| 21 | 2194973N | Trim, Door-top (almond) |
|
- | |||||
| 22 | 2194969W | Trim, Door-bottom (white) |
|
$ 5.51 | |||||
| 22 | 2194969N | Trim, Door-bottom (almond) |
|
- | |||||
| 23 | 2195917 | Endcap (left) |
|
- | |||||
| 24 | WP2195916K | End Cap (right) (Replaces: 2195916) |
|
Immediately | $ 13.18 |
