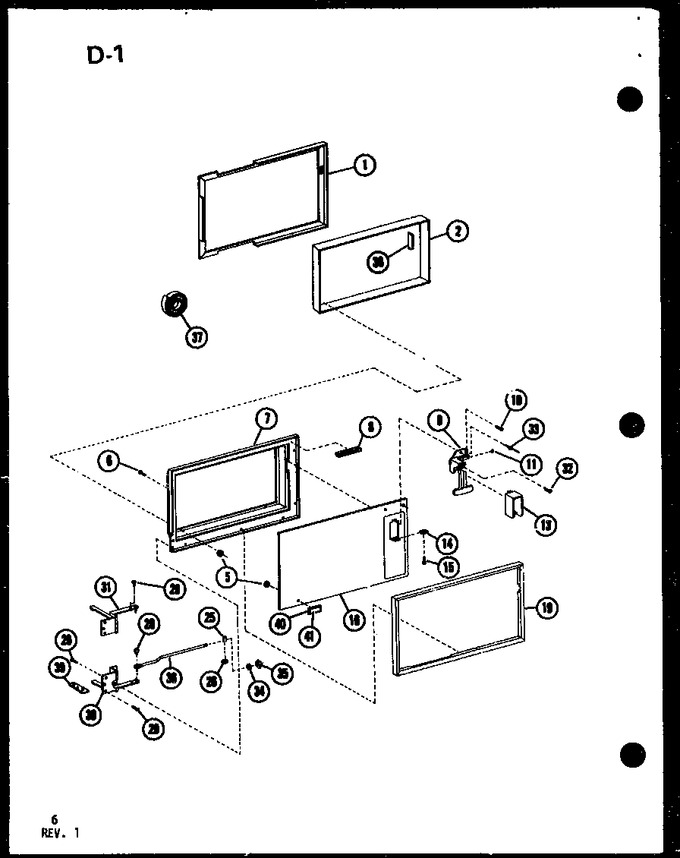

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7396401		Gasket		Appelez-nous	-
2	D7143802		Inner Door Kit		Appelez-nous	-
5	M0288801		Nut K		Appelez-nous	-
6	M0253418		Screw		Appelez-nous	-
7	D7132501		Weldment, Inner Door Ring		Appelez-nous	-
8	A4591121		Gasket		Appelez-nous	-
9	D7178504		Door Latch Assembly		Appelez-nous	-
10	WPW10068250		Screw   (Replaces: M0234029)				$ 3.84
11	A3195701		Guides Hndl K		Appelez-nous	-
13	B5671901		Bezel-door Handle		Appelez-nous	-
14	M0288102		Speed Nut		Appelez-nous	-
15	M0213817		Screw		Appelez-nous	-
16	D7178503		T Handle Kit		Appelez-nous	-
19	D7132701		Outer Door Ring		Appelez-nous	-
25	A3181801		Guide-door Stop		Appelez-nous	-
26	A3182101		Bushing		Appelez-nous	-
28	A3185001		Bushing-door Arm		Appelez-nous	-
29	M0253230		Screw		Appelez-nous	-
30	C3666306		Hinge-bottom		Appelez-nous	-
31	C3666305		Hinge-top		Appelez-nous	-
32	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 13.42
33	B5642906		Rivet, Pop (wht)		Appelez-nous	-
34	M0270501		Washer		Appelez-nous	-
35	WP488130		Nut   (Replaces: M0282007)				$ 6.59
36	B5748702		Arm, Dr Stop K		Appelez-nous	-
37	M0275154		Tape Per Roll		Appelez-nous	-
37	M0275141		Tape, Gasket To Door, 1``		Appelez-nous	-
38	M0275501		Sealer		Appelez-nous	-
39	A3250301		Shim-hinge		Appelez-nous	-
40	B5694901		Medallion		Appelez-nous	-
41	C8883501		Medallion Insert		Appelez-nous	-
