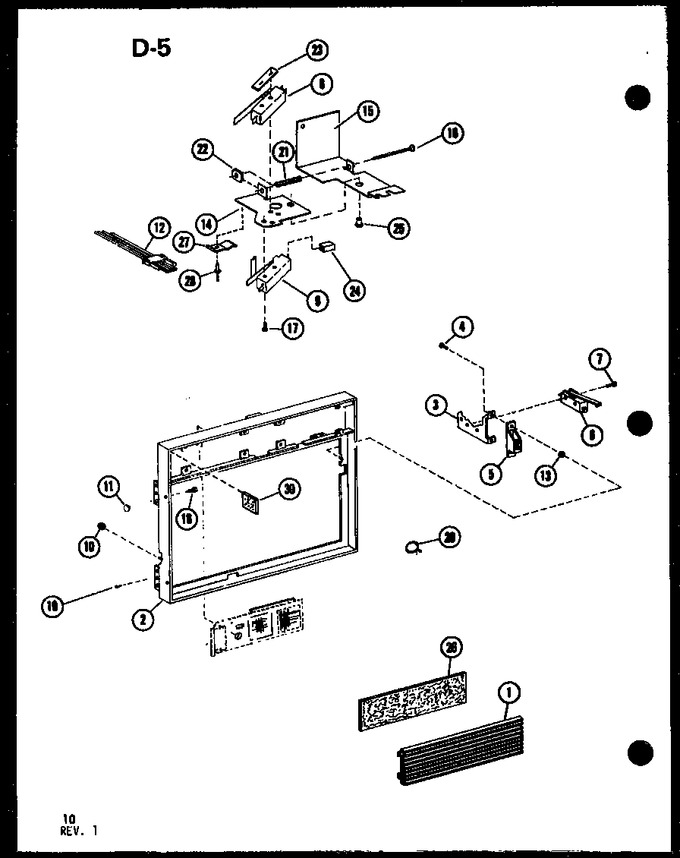

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8853301		Grille-air Inlet		Appelez-nous	-
2	D7293502		Bezel-outer Case		Appelez-nous	-
3	B5675403		Bracket-latch		Appelez-nous	-
4	M0216517		Screw		Appelez-nous	-
5	C3680202		Strike-latch		Appelez-nous	-
6	A3163414		Switch-preform		Appelez-nous	-
7	M0227520		Screw		Appelez-nous	-
8	C3670014		Switch-interlock (limit)		Appelez-nous	-
9	B8324001		Intlk Sw-weld		Appelez-nous	-
10	M0282901		Nut, Self Thread		Appelez-nous	-
11	M0285902		T Nut		Appelez-nous	-
12	D7525001		Wiring Harness		Appelez-nous	-
13	M0270524		Washer		Appelez-nous	-
14	C8875301		Bracket		Appelez-nous	-
15	B8332501		Bracket Interlock		Appelez-nous	-
16	M0211025		Screw		Appelez-nous	-
17	M0213123		Screw		Appelez-nous	-
18	M0205442		Screw, Nylock		Appelez-nous	-
19	M0253230		Screw		Appelez-nous	-
20	M0321204		Wire Tie		Appelez-nous	-
21	A3277701		Spring A		Appelez-nous	-
22	M0288010		Speed Nut		Appelez-nous	-
23	M0289505		Speednut		Appelez-nous	-
24	M0325301		Insulator, Term. K		Appelez-nous	-
25	M1205109		Rivet A-k		Appelez-nous	-
26	A3094904		Filter		Appelez-nous	-
27	B8321802		Clip		Appelez-nous	-
28	A4539601		Pop Rivet		Appelez-nous	-
30	B5107619		Gasket		Appelez-nous	-
NI	A3293501		Bushing		Appelez-nous	-
