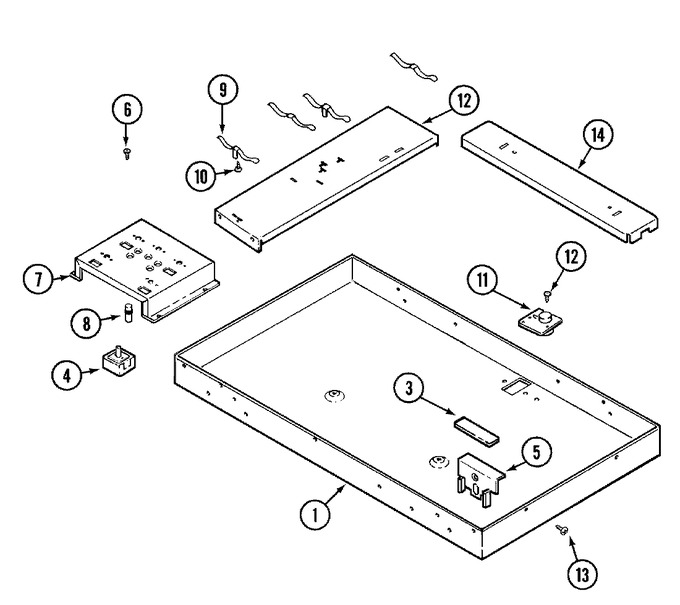

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006976 | Box, Burner | 13 |
|
- | ||||
| 1 | 71001027 | Box, Burner | 11 |
|
- | ||||
| 3 | 71001239 | Pad, Glass Support | 11 |
|
- | ||||
| 4 | W11088181 | Switch, Infinite (Replaces: 71001166) | 11 |
|
Immediately | $ 112.82 | |||
| 5 | 71001108 | Support, Glass | 11 |
|
- | ||||
| 6 | WP7101P309-60 | Screw (Replaces: Y04100501) | 11 |
|
Immediately | $ 6.57 | |||
| 7 | 74006972 | Plate, Switch (36``) | 13 |
|
- | ||||
| 7 | 04100441 | Plate, Switch Mtg | 11 |
|
- | ||||
| 8 | 74006973 | Plate, Signal Light (36``) | 13 |
|
- | ||||
| 8 | 71001714 | Wire, Pilot Light | 11 |
|
- | ||||
| 8 | Y706125 | Light, Indicator | 11 |
|
- | ||||
| 9 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 11 |
|
$ 11.03 | ||||
| 10 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 7.79 | ||||
| 11 | 71001715 | Wire Cable Assy. | 11 |
|
- | ||||
| 12 | 71001616 | Support, Switch Plate | 11 |
|
- | ||||
| 12 | 71001613 | Shield, Inf | 11 |
|
- | ||||
| 12 | 74006921 | Support, Switch Plate | 13 |
|
- | ||||
| 12 | 74006920 | Crossbar, Elem Support | 13 |
|
- | ||||
| 12 | Y04100419 | Crossbar, Elem Support | 11 |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: Y700502) | 13 |
|
Immediately | $ 7.43 | |||
| 13 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.43 | |||
| 14 | 04100443 | Crossbar, Elem Support | 11 |
|
- | ||||
| 14 | 74006977 | Plate, Element Support (cntr) | 13 |
|
- | ||||
| NI | WP71001171 | Screw, Ground (Replaces: 71001171) | 11 |
|
$ 6.57 | ||||
| NI | 71001716 | Wire (wht) | 11 |
|
- | ||||
| NI | 71001717 | Wire (blue) | 11 |
|
- | ||||
| NI | Y04100425 | Wire, Violet (18``) | 11 |
|
- | ||||
| NI | Y04100424 | Wire, Yellow (15``) | 11 |
|
- |
