01 - Body

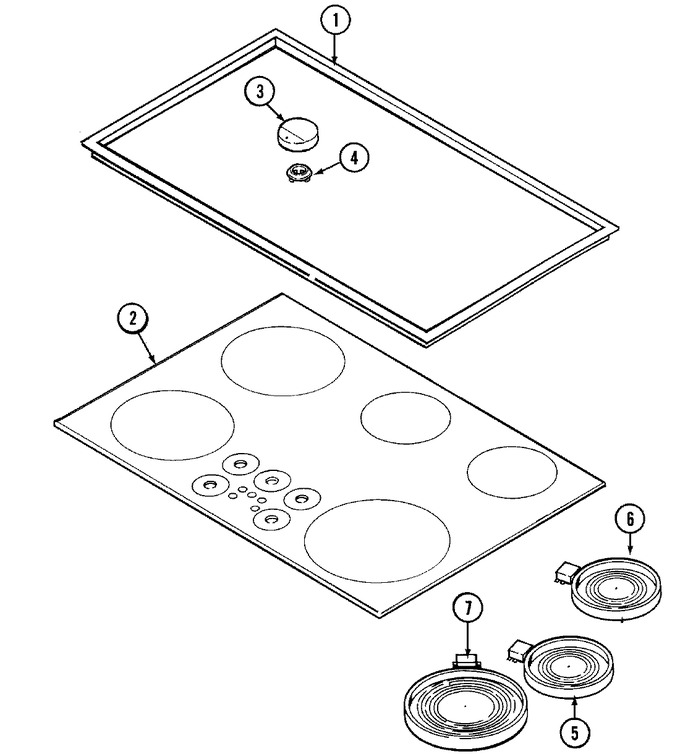

02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001025 | Frame (blk) | 11 |
|
- | ||||
| 2 | 71001718 | Glass, Cooktop (blk) | 11 |
|
- | ||||
| 3 | 71001719 | Knob, Switch (blk) | 11 |
|
- | ||||
| 4 | Y706102 | Grommet, Infinite Switch | 11 |
|
$ 6.10 | ||||
| 5 | W10823704 | Element, Radiant (1200w) (Replaces: 71001423) | 11 |
|
Immediately | $ 324.46 | |||
| 6 | W10823693 | Element, Radiant (1700w) (Replaces: 71001624) | 11 |
|
Immediately | $ 234.42 | |||
| 7 | W10823707 | Element, Radiant (2200w) (Replaces: 71001424) | 11 |
|
Immediately | $ 331.93 | |||
| NI | 71001722 | Manual, Use & Care (frch) | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
