SELECT A DIAGRAM

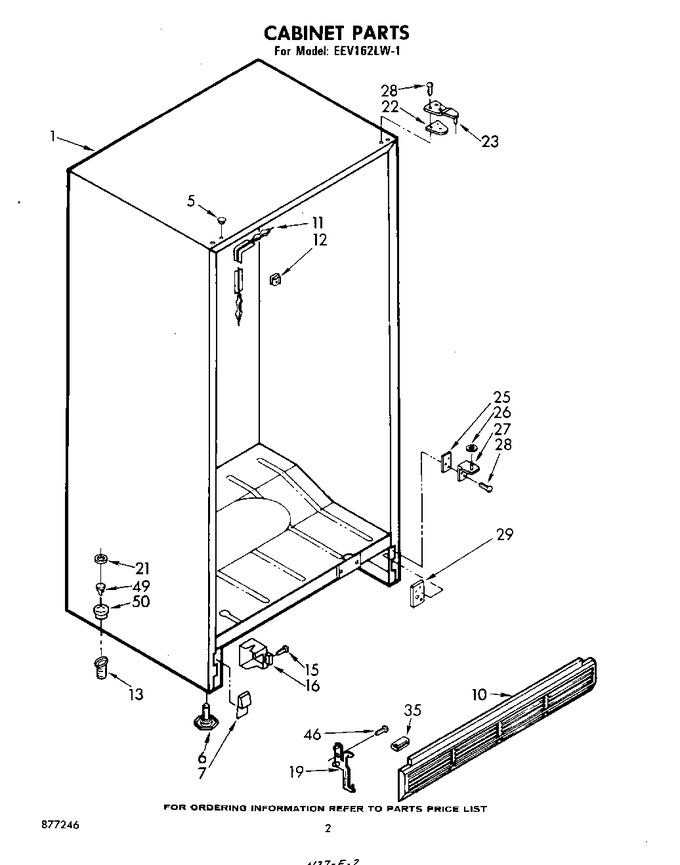

02 - Cabinet


03 - Door , Lit/optional


04 - Unit


05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
5	842031		Plug, Hole (3)		Appelez-nous	-
6	W11117769		Leveler (2)   (Replaces: 848392)			Immediately	$ 17.43
7	838535		Filler, Grille		Appelez-nous	-
10	991917		Grille		Appelez-nous	-
11	851608		Heater, Stile		Appelez-nous	-
12	488295		Clip (repair)		Appelez-nous	-
13	981147		Fitting, Drain		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.45
16	549947		Box, Junction		Appelez-nous	-
19	844614		Support, Grille (2)		Appelez-nous	-
21	835370		Cover, Drain		Appelez-nous	-
22	836151		Shim, Hinge		Appelez-nous	-
23	842038		Hinge, Top		Appelez-nous	-
25	836196		Shim, Hinge		Appelez-nous	-
26	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.32
27	836686		Hinge (bottom)		Appelez-nous	-
28	488949		Screw (repair)		Appelez-nous	-
28	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 7.70
29	836162		Tap Plate		Appelez-nous	-
35	546131		Bumper (2)		Appelez-nous	-
46	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
49	984395		Drain Cap		Appelez-nous	-
50	984397		Drain Ferrule		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
