SELECT A DIAGRAM

02 - Cabinet


03 - Door , Lit/optional


04 - Unit


05 - Liner


06 - Breaker

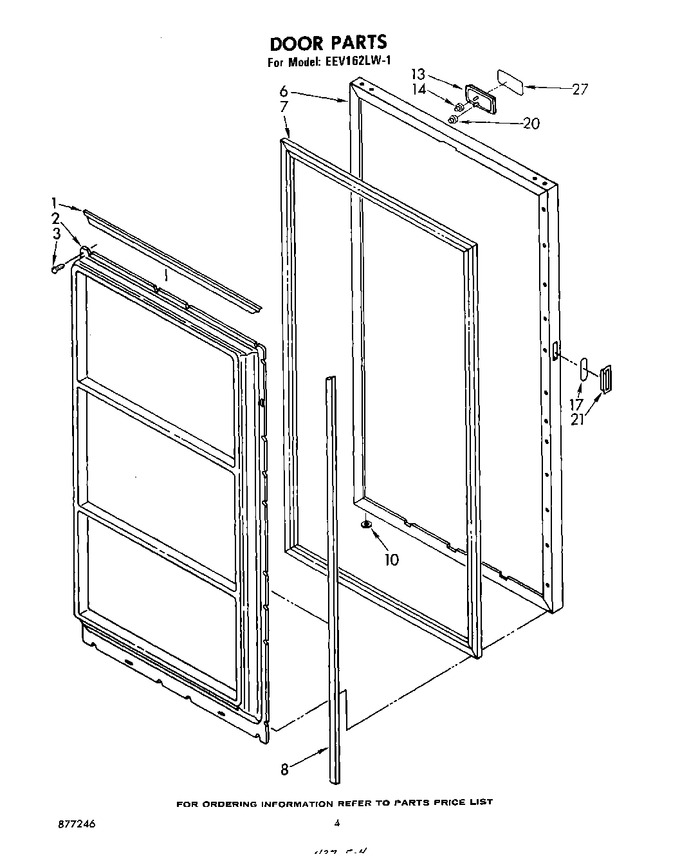

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	836115		Retainer, Gasket (2)		Appelez-nous	-
2	981954		Panel		Appelez-nous	-
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
6	984690		Door, Exterior		Appelez-nous	-
7	2188439A		Gasket, Magnetic   (Replaces: 981092)		Appelez-nous	-
8	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
10	534927		Plug, Hole (2)		Appelez-nous	-
13	845354		Escutcheon		Appelez-nous	-
14	938889		Stud, Anchor		Appelez-nous	-
17	845758		Gasket, Handle		Appelez-nous	-
20	659676		Clip, Tubular		Appelez-nous	-
21	WP984493		Handle   (Replaces: 984493)				$ 103.04
27	877246		List, Parts		Appelez-nous	-
27	876370		Insulation, Fiberglass (63.50`` X 35/50`` X 2.63``)   (Replaces: 978941)				$ 218.83
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
27	983914		Insert		Appelez-nous	-
27	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
27	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
27	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
27	799340		Lacquer, Black (1 Qt. Uncut)		Appelez-nous	-
27	799832		Kit, Porcelain Repair		Appelez-nous	-
27	988095		Guide, Use & Care		Appelez-nous	-
27	656493		Booklet, Freezing		Appelez-nous	-
27	934946		Energy Guide		Appelez-nous	-
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
27	261887		Lacquer, Coffee (1 Qt. Uncut)		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	799351		Thinner, Blend (1 Gal.)		Appelez-nous	-
27	261889		Lacquer, New Avocado (1 Qt. Uncut)		Appelez-nous	-
27	261891		Lacquer, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
27	978883		Lacquer, Almond (1 Qt. Uncut)		Appelez-nous	-
27	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
27	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 218.83
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
27	511881		Lacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
27	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	261890		Xspray (13 Oz.)		Appelez-nous	-
	261888		Xspray (13 Oz.)		Appelez-nous	-
	261886		Xspray (13 Oz.)		Appelez-nous	-
	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 84.73
	206925		Xleveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90

    View Diagram in Separate Window       Print Part List
