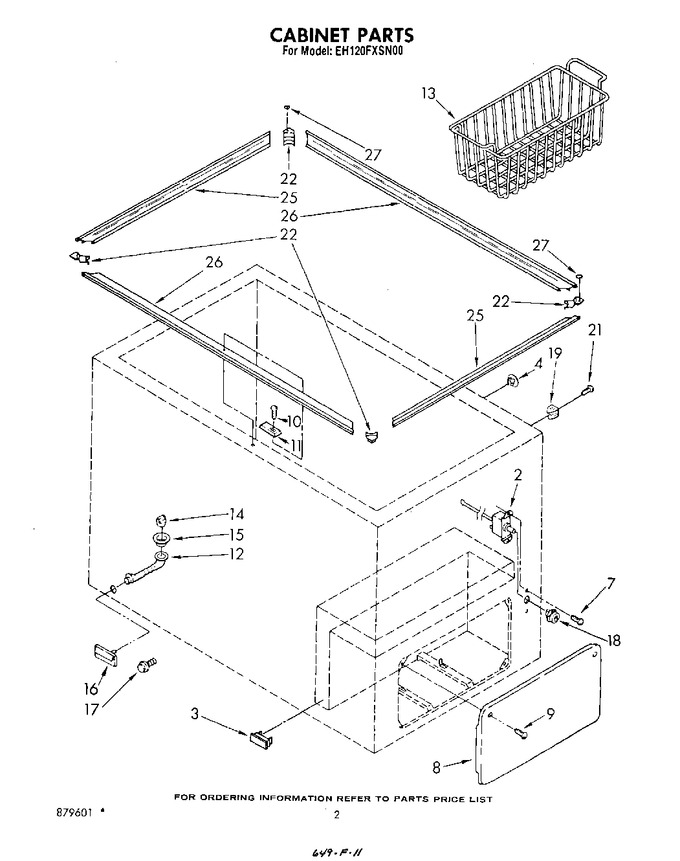

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 728368 | Control, Cold |
|
- | |||||
| 3 | 556230 | Indicator, Light |
|
- | |||||
| 4 | 482584 | Plug Button (2) |
|
- | |||||
| 7 | 595022 | Screw |
|
- | |||||
| 8 | 753077 | Door |
|
- | |||||
| 9 | 681318 | Screw |
|
- | |||||
| 10 | 681362 | Screw |
|
- | |||||
| 11 | 730718 | Box, Strike |
|
- | |||||
| 12 | 556624 | Tube, Drain |
|
- | |||||
| 13 | 730875 | Basket |
|
- | |||||
| 14 | 576342 | Plug, Drain |
|
- | |||||
| 15 | 576343 | Ferrule, Drain |
|
- | |||||
| 16 | 730730 | Cover, Drain |
|
- | |||||
| 17 | 594467 | Adapter, Hose |
|
- | |||||
| 18 | 727020 | Knob, Control |
|
- | |||||
| 19 | 556013 | Rod Holder (2) |
|
- | |||||
| 21 | 681672 | Screw |
|
- | |||||
| 22 | 730717 | Corner (4) |
|
- | |||||
| 25 | 730716 | Collar, End (2) |
|
- | |||||
| 26 | 730729 | Collar (2) (front & Rear) |
|
- | |||||
| 27 | 728362 | Grommet (2) |
|
- | |||||
| 978026 | Access Valve (5/16``) |
|
Immediately | $ 121.04 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| WP279368 | Cement, Vinyl (1 Pt.) (Replaces: 576269) |
|
Immediately | $ 104.81 | |||||
| WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | |||||
| SF5538 | Access Valve (3/8``) (Replaces: 978027) |
|
$ 16.79 | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| WP978025 | Access Valve (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | |||||
| 978650 | Kit, Insulation (door Only) |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | |||||
| 978030 | Access Valve (3/4``) |
|
$ 123.53 | ||||||
| 978029 | Access Valve (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Access Valve (1/2``) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | ||||||
| LIT879601 | List, Parts |
|
- | ||||||
| LIT730731 | Use & Care Guide |
|
- | ||||||
| LIT730707 | Energy Guide |
|
- | ||||||
| LIT656493 | Book, How To Freeze |
|
- | ||||||
| LIT1108330 | Tech Sheet |
|
- |
