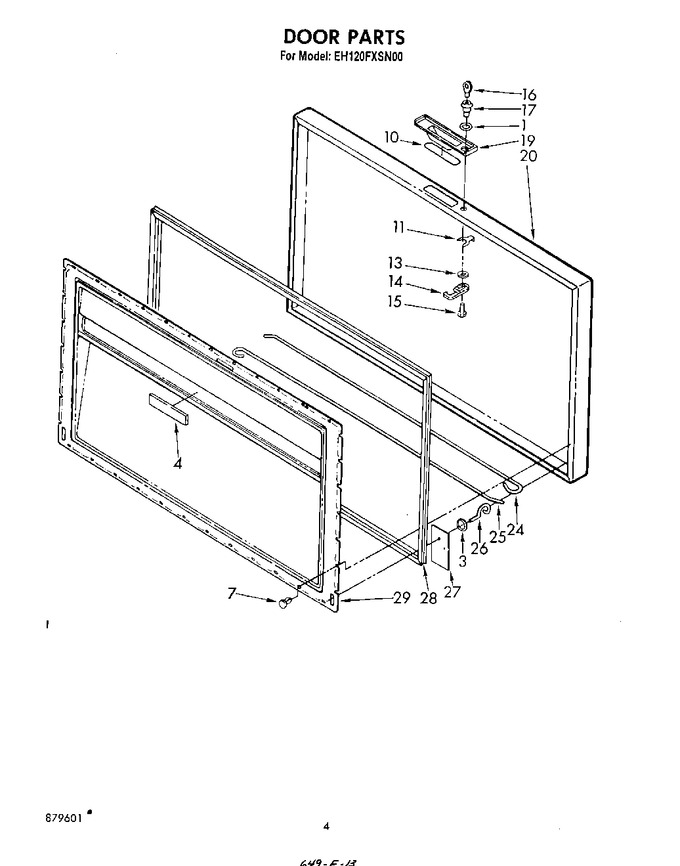

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	753610		``o`` Ring		Appelez-nous	-
3	730726		Hinge, Seal		Appelez-nous	-
4	730715		Door Panel, Decal		Appelez-nous	-
7	596788		Clip (32)				$ 5.51
10	727809		Gasket, Handle		Appelez-nous	-
11	983465		Clip, Lock		Appelez-nous	-
13	728115		Plate, Lock		Appelez-nous	-
14	728222		Hook, Lock		Appelez-nous	-
15	680483		Screw		Appelez-nous	-
16	WP842177		Key, Lock   (Replaces: 842177)				$ 7.66
17	586331		Lock Assembly		Appelez-nous	-
19	730714		Handle		Appelez-nous	-
20	730722		Panel, Door Exterior		Appelez-nous	-
24	728034		Bar, L.h. Torsion		Appelez-nous	-
25	728035		Bar, R.h. Torsion		Appelez-nous	-
26	753874		Hinge, L.h.		Appelez-nous	-
26	753875		Hinge, R.h.		Appelez-nous	-
27	566219		Cover, Hinge Rod (2)		Appelez-nous	-
28	728804		Gasket, Door		Appelez-nous	-
29	730727		Panel, Door Interior		Appelez-nous	-
