SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section

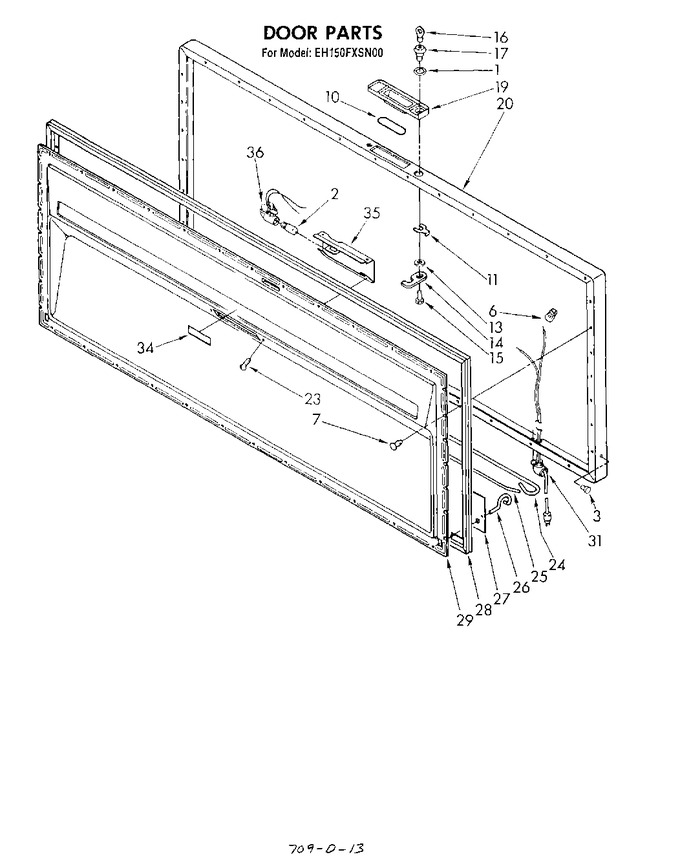

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	753610		``o`` Ring		Appelez-nous	-
2	W10873798		Bulb, Light   (Replaces: 596677)			Immediately	$ 13.16
3	989197		Hole Plug (almond)		Appelez-nous	-
6	547217		Conector, Wire		Appelez-nous	-
7	596788		Clip (36)				$ 5.51
10	727809		Gasket, Handle		Appelez-nous	-
11	983465		Clip, Spring		Appelez-nous	-
13	728115		Plate, Bolt		Appelez-nous	-
14	728222		Hook, Lock		Appelez-nous	-
15	680483		Screw		Appelez-nous	-
16	WP842177		Key   (Replaces: 842177)				$ 7.66
17	586331		Lock		Appelez-nous	-
19	730714		Handle		Appelez-nous	-
20	730739		Panel, Door Exterior (almond)		Appelez-nous	-
23	WP965173		Screw, 8-15 X 3/8 (ground)   (Replaces: 595431)			Immediately	$ 10.68
24	728036		Torsion Bar, L.h.		Appelez-nous	-
25	728037		Torsion Bar, R.h.		Appelez-nous	-
26	753875		Hinge, R.h.		Appelez-nous	-
26	753874		Hinge, L.h.		Appelez-nous	-
27	566219		Cover, Hinge Rod (2)		Appelez-nous	-
28	728686		Gasket		Appelez-nous	-
29	730742		Panel, Door Interior		Appelez-nous	-
31	728838		Harness, Exterior Door		Appelez-nous	-
34	730037		Decal, Door Panel		Appelez-nous	-
35	594458		Deflector, Light		Appelez-nous	-
36	594815		Lampholder		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
