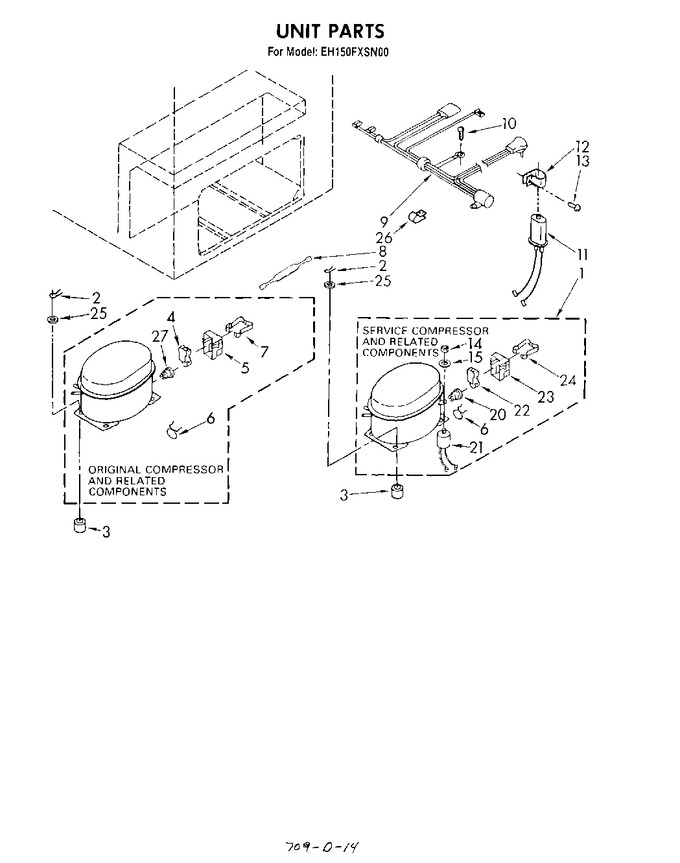

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	482981		Compressor (service Replacement) (items 6,14,15, 20, 21, 22, 23 & 24 Included With Service Compresso		Appelez-nous	-
2	596798		Clip, Compressor Mounting (4)		Appelez-nous	-
3	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
4	1100806		Relay (used W/original Compressor)		Appelez-nous	-
5	1105015		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
6	1114190		Spring, Overload		Appelez-nous	-
7	938384		Clamp (used W/original Compressor)		Appelez-nous	-
8	728583		Drier		Appelez-nous	-
9	730032		Harness, Wiring		Appelez-nous	-
10	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	1108324		Running, Capacitor		Appelez-nous	-
12	1101184		Clamp, Capacitor		Appelez-nous	-
13	WP489128		Screw   (Replaces: 488500)				$ 10.26
14	489142		Nut		Appelez-nous	-
15	489143		Washer		Appelez-nous	-
20	483037		Overload (used On Service Compressor)		Appelez-nous	-
21	483009		Capacitor (used On Service Compressor)		Appelez-nous	-
22	WP2262181		Relay (used On Service Compressor)   (Replaces: 1108143)				$ 115.90
23	1108115		Cover, Terminal (used On Service Compressor)		Appelez-nous	-
24	938384		Strap, Cover (used On Service Compressor)		Appelez-nous	-
25	680975		Washer, Compressor Mounting (4)		Appelez-nous	-
26	653035		Clip, Holding		Appelez-nous	-
27	1100807		Overload		Appelez-nous	-
