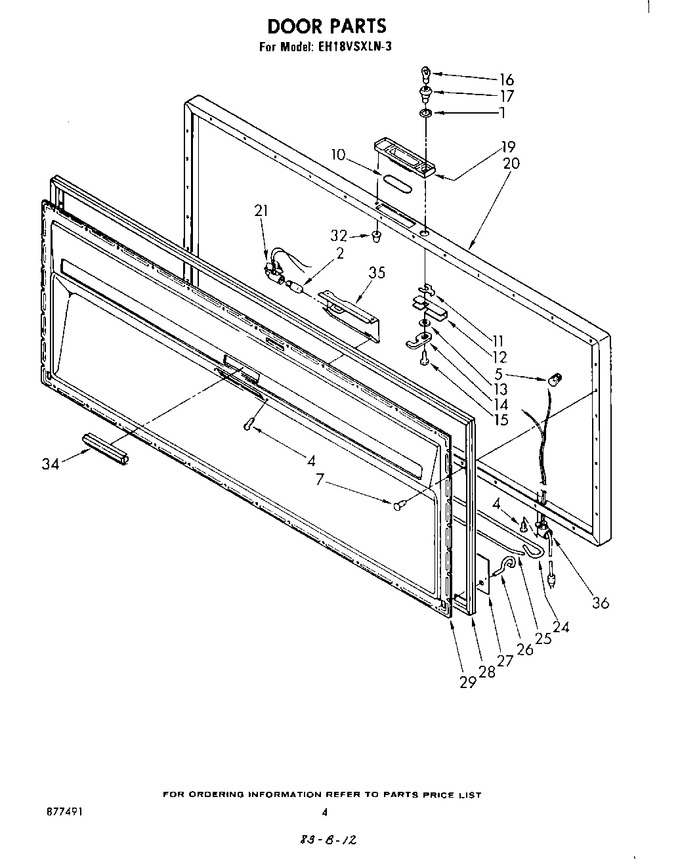

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	753610		``o`` Ring		Appelez-nous	-
2	W10873798		Bulb, Light   (Replaces: 596677)			Immediately	$ 13.16
4	WP965173		Screw   (Replaces: 595431)			Immediately	$ 10.68
5	596707		Connector		Appelez-nous	-
7	596788		Clip (40)				$ 5.51
10	589208		Gasket, Handle		Appelez-nous	-
11	586335		Clip, Spring		Appelez-nous	-
12	753586		Shroud, Lock		Appelez-nous	-
13	581219		Plate, Bolt		Appelez-nous	-
14	586468		Hook, Lock		Appelez-nous	-
15	681569		Screw		Appelez-nous	-
16	WP842177		Key   (Replaces: 842177)				$ 7.66
17	586331		Lock		Appelez-nous	-
19	728289		Handle		Appelez-nous	-
20	728294		Panel, Door Exterior		Appelez-nous	-
21	594815		Lampholder & Switch Assembly		Appelez-nous	-
24	728038		Bar, L.h. Torsion		Appelez-nous	-
25	728039		Bar, R.h. Torsion		Appelez-nous	-
26	753874		Hinge, L.h.		Appelez-nous	-
26	753875		Hinge, R.h.		Appelez-nous	-
27	566219		Cover, Hinge Rod (2)		Appelez-nous	-
28	753001		Gasket		Appelez-nous	-
29	753910		Panel, Door Interior		Appelez-nous	-
32	681513		Clip, Tubular (2)		Appelez-nous	-
34	753871		Lens, Light		Appelez-nous	-
35	594459		Light, Deflector		Appelez-nous	-
36	592866		Harness Assembly		Appelez-nous	-
