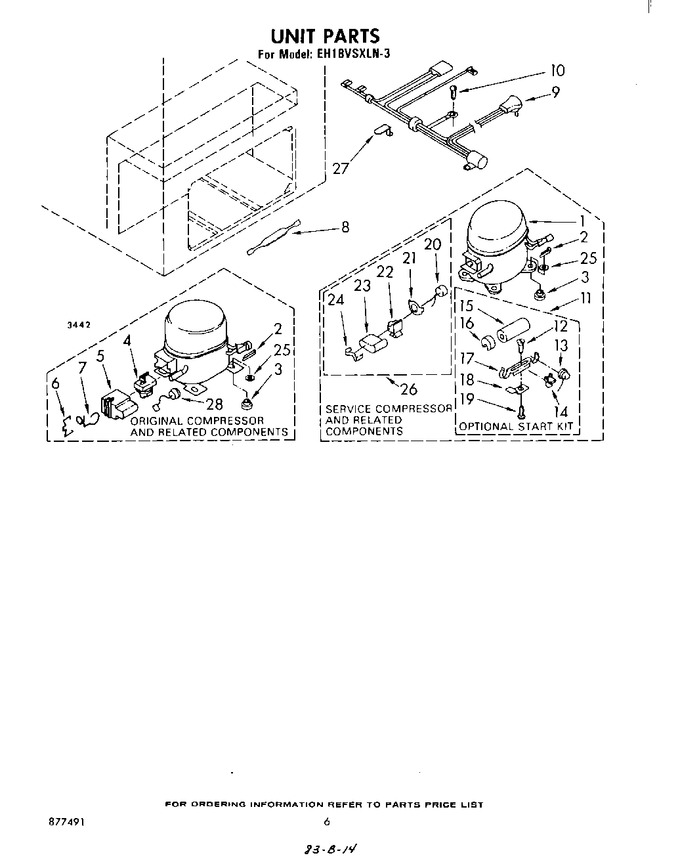

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439652 | Compressor (service Replacement) (also Order Item No. 26) (also Order 482331 Installation Kit) (Replaces: 588602) |
|
$ 397.98 | |||||
| 2 | 596514 | Clip, Compressor Mounting (4) |
|
- | |||||
| 3 | 876811 | Grommet, Compressor Mounting (4) (Replaces: 592185) |
|
$ 7.01 | |||||
| 4 | 753504 | Relay, Starting (used W/original Compressor) |
|
- | |||||
| 5 | 727044 | Cover, Relay & Overload Assembly (used W/original Compressor) |
|
- | |||||
| 6 | 727045 | Strap, Relay & Overload Cover (used W/original Compressor) |
|
- | |||||
| 7 | 727046 | Clip, Cover (used W/original Compressor) |
|
- | |||||
| 8 | W10843121 | Drier (Replaces: 727137) |
|
Immediately | $ 51.42 | ||||
| 9 | 586612 | Harness, Wiring |
|
- | |||||
| 10 | 595325 | Screw, 8-32 X 5/8 |
|
- | |||||
| 11 | 482477 | Start Kit (used W/service Compressor 588602) |
|
- | |||||
| 12 | 487631 | Screw (2) (used On Start Kit 482477) |
|
- | |||||
| 13 | 482478 | Overload (used On Start Kit 482477) |
|
- | |||||
| 14 | 549936 | Relay (used On Start Kit 482477) |
|
- | |||||
| 15 | WP482156 | Capacitor (used On Start Kit 482477) (189-227mfd) (Replaces: 482156) |
|
$ 102.00 | |||||
| 16 | 482157 | Cap, Capacitor (used On Start Kit 482477) |
|
- | |||||
| 17 | 482158 | Support, Bracket (used On Start Kit 482477) |
|
- | |||||
| 18 | 549939 | Bracket, Mounting (used On Start Kit 482477) |
|
- | |||||
| 19 | 488487 | Screw (used On Start Kit 482477) |
|
- | |||||
| 20 | 594317 | Overload (used On Service Compressor 588602) |
|
- | |||||
| 21 | 560851 | Spring, Overload (used On Service Compressor 588602) |
|
- | |||||
| 22 | 579958 | Relay (used On Service Compressor 588602) |
|
- | |||||
| 23 | 560849 | Cover, Terminal (used On Service Compressor 588602) |
|
- | |||||
| 24 | 560850 | Strap, Cover (used On Service Compressor 588602) |
|
- | |||||
| 25 | 680975 | Washer, Compressor Mounting (4) |
|
- | |||||
| 26 | 876112 | Kit, Compressor |
|
- | |||||
| 27 | 653035 | Clip |
|
- | |||||
| 28 | 753505 | Overload (used W/original Compressor) |
|
- |
