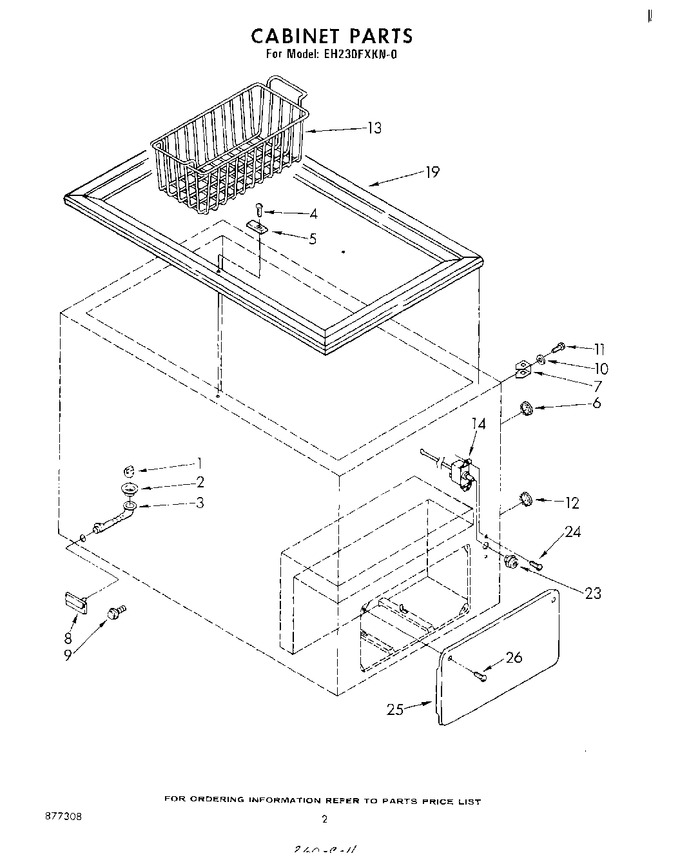

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 576342 | Plug, Drain |
|
- | |||||
| 2 | 576343 | Ferrule, Drain |
|
- | |||||
| 3 | 556624 | Tube, Drain |
|
- | |||||
| 4 | 681362 | Screw |
|
- | |||||
| 5 | 556612 | Box, Strike |
|
- | |||||
| 6 | 482584 | Plug Button (2) |
|
- | |||||
| 7 | 556013 | Rod Holder (2) |
|
- | |||||
| 8 | 753073 | Cover, Drain |
|
- | |||||
| 9 | 596259 | Adapter, Hose |
|
- | |||||
| 10 | 680661 | Washer |
|
- | |||||
| 11 | 681322 | Screw |
|
- | |||||
| 12 | 681494 | Plug, Button |
|
- | |||||
| 13 | 753696 | Basket (3) |
|
- | |||||
| 14 | 592855 | Control, Temperature |
|
- | |||||
| 19 | 594498 | Collar |
|
- | |||||
| 23 | 727020 | Knob |
|
- | |||||
| 24 | 595022 | Screw |
|
- | |||||
| 25 | 753077 | Door |
|
- | |||||
| 26 | 681318 | Screw |
|
- |
