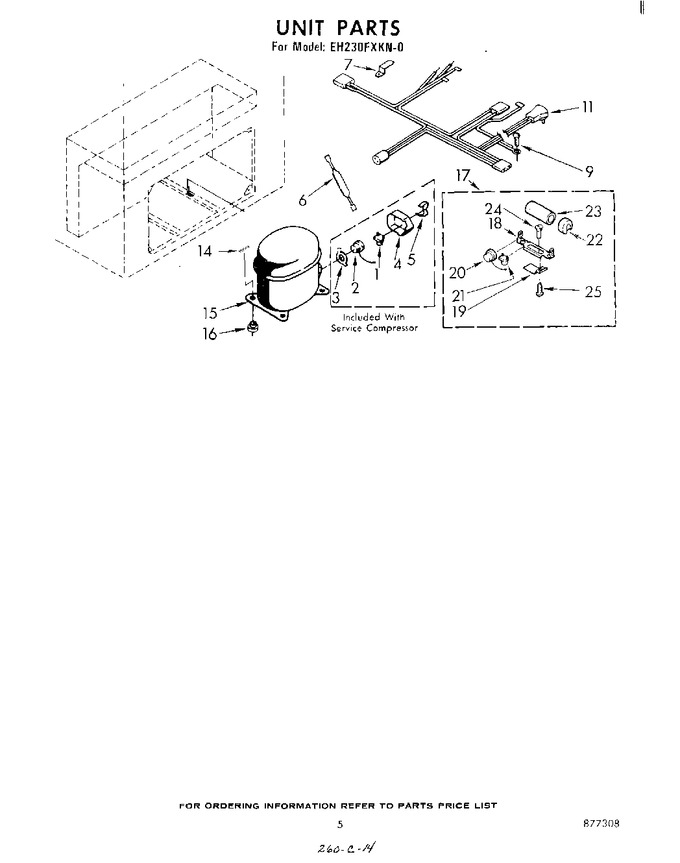

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 753525 | Relay |
|
- | |||||
| 2 | 753526 | Overload |
|
- | |||||
| 3 | 560851 | Spring, Overload |
|
- | |||||
| 4 | 589230 | Cover, Terminal |
|
- | |||||
| 5 | 560850 | Strap, Cover |
|
- | |||||
| 6 | W10843121 | Drier (Replaces: 727137) |
|
Immediately | $ 51.42 | ||||
| 7 | 653035 | Clip |
|
- | |||||
| 9 | 595325 | Screw, 8-32 X 5/8 |
|
- | |||||
| 11 | 586946 | Harness, Wiring |
|
- | |||||
| 14 | 596514 | Clip, Compressor Mounting (4) |
|
- | |||||
| 15 | DE81-05944A | Compressor (also Includes Items 1, 2, 3, 4, & 5) (Replaces: 702218) |
|
$ 157.82 | |||||
| 15 | 876765 | (also Order Installation Kit) (Replaces: 482331) |
|
Immediately | $ 81.59 | ||||
| 16 | 876811 | Grommet, Compressor Mounting (4) (Replaces: 592185) |
|
$ 7.01 | |||||
| 17 | 482706 | Start Kit |
|
- | |||||
| 18 | 35564 | Bracket, Capacitor (used On Start Kit 482706) |
|
$ 472.30 | |||||
| 19 | 549939 | Bracket, Support (used On Start Kit 482706) |
|
- | |||||
| 20 | 482708 | Overload (used On Start Kit 482706) |
|
- | |||||
| 21 | 482707 | Relay (used On Start Kit 482706) |
|
- | |||||
| 22 | 482157 | Cap, Capacitor (used On Start Kit 482706) |
|
- | |||||
| 23 | WP482156 | Capacitor (used On Start Kit 482706) (Replaces: 482156) |
|
$ 102.00 | |||||
| 24 | 487631 | Screw (2) (used On Start Kit 482706) |
|
- | |||||
| 25 | 877308 | List, Parts |
|
- | |||||
| 25 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 25 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 25 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 25 | 978029 | Access Valve (5/8``) |
|
$ 93.85 | |||||
| 25 | 978030 | Access Valve (3/4``) |
|
$ 123.53 | |||||
| 25 | 656493 | Book, Freezing |
|
- | |||||
| 25 | 727554 | Guide, Use & Care |
|
- | |||||
| 25 | 753916 | Energy Guide |
|
- | |||||
| 25 | WP978025 | Access Valve (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 25 | 488487 | Screw (used On Start Kit 482706) |
|
- | |||||
| 25 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 25 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 25 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 25 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 | ||||
| 25 | 978650 | Kit, Insulation (door Only) |
|
- | |||||
| 25 | WP279368 | Cement, Vinyl (1 Pt.) (Replaces: 576269) |
|
Immediately | $ 104.81 | ||||
| 25 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 25 | 978026 | Access Valve (5/16``) |
|
Immediately | $ 121.04 | ||||
| 25 | SF5538 | Access Valve (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 25 | 978028 | Access Valve (1/2``) |
|
- | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 |
