SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section

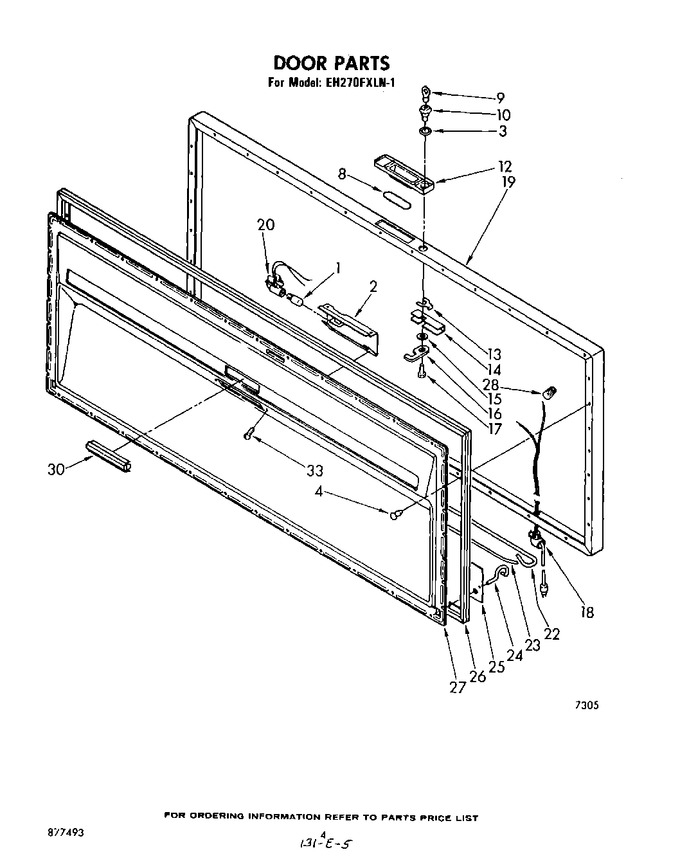

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10873798		Bulb, Light   (Replaces: 596677)			Immediately	$ 13.16
2	594459		Deflector, Light (finish)		Appelez-nous	-
3	753610		``o`` Ring		Appelez-nous	-
4	596788		Clip (50)				$ 5.51
8	589208		Gasket, Handle		Appelez-nous	-
9	WP842177		Key   (Replaces: 842177)				$ 7.66
10	586331		Lock		Appelez-nous	-
12	728289		Handle		Appelez-nous	-
13	586335		Clip		Appelez-nous	-
14	753586		Shroud		Appelez-nous	-
15	581219		Plate, Bolt		Appelez-nous	-
16	586468		Hook, Lock		Appelez-nous	-
17	681569		Screw		Appelez-nous	-
18	592866		Wire, Harness Door		Appelez-nous	-
19	728296		Panel, Exterior Door		Appelez-nous	-
20	594815		Lampholder		Appelez-nous	-
22	728042		Bar, L.h. Torsion		Appelez-nous	-
23	728043		Bar, R.h. Torsion		Appelez-nous	-
24	753874		Hinge, L.h.		Appelez-nous	-
24	753875		Hinge, R.h.		Appelez-nous	-
25	566219		Cover, Hinge Rod (2)		Appelez-nous	-
26	753929		Gasket		Appelez-nous	-
27	753930		Panel, Interior		Appelez-nous	-
28	596707		Connector, Wire		Appelez-nous	-
30	753871		Lens, Light		Appelez-nous	-
33	WP965173		Screw, 8-15 X 3/8   (Replaces: 595431)			Immediately	$ 10.68

    View Diagram in Separate Window       Print Part List
