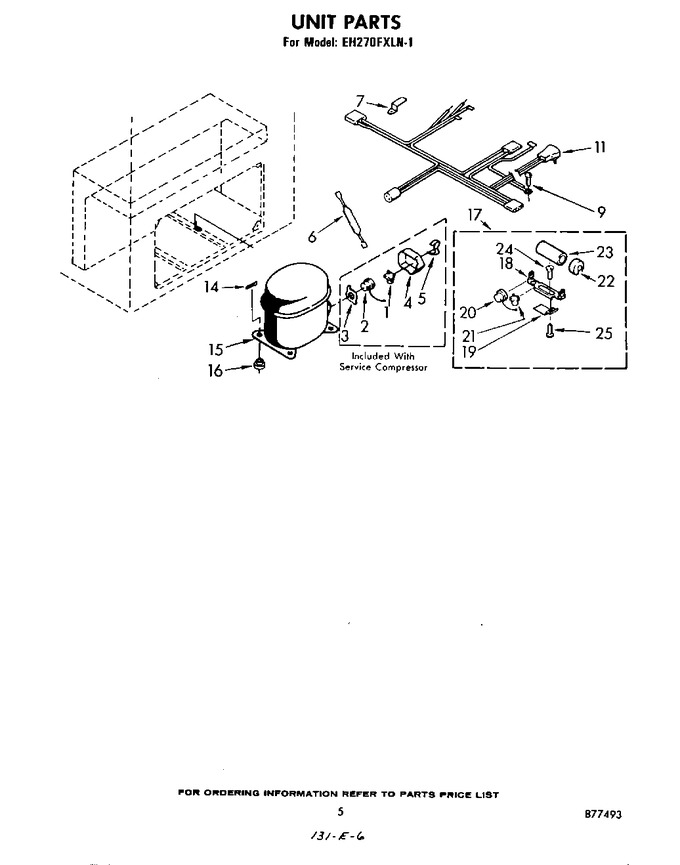

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	753525		Relay		Appelez-nous	-
2	753526		Overload		Appelez-nous	-
3	560851		Spring, Overload		Appelez-nous	-
4	589230		Cover, Terminal		Appelez-nous	-
5	560850		Strap, Cover		Appelez-nous	-
6	W10843121		Drier   (Replaces: 727137)			Immediately	$ 51.42
7	653035		Clip		Appelez-nous	-
9	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	586946		Harness, Wiring		Appelez-nous	-
14	596514		Clip, Compressor Mounting (4)		Appelez-nous	-
15	DE81-05944A		Compressor (also Includes Items 1, 2, 3, 4, & 5)   (Replaces: 702218)				$ 157.82
15	876765		(also Order Installation Kit)   (Replaces: 482331)			Immediately	$ 81.59
16	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
17	482706		Start Kit		Appelez-nous	-
18	35564		Bracket, Capacitor (used On Start Kit 482706)				$ 472.30
19	549939		Bracket, Support (used On Start Kit 482706)		Appelez-nous	-
20	482708		Overload (used On Start Kit 482706)		Appelez-nous	-
21	482707		Relay (used On Start Kit 482706)		Appelez-nous	-
22	482157		Cap, Capacitor (used On Start Kit 482706)		Appelez-nous	-
23	WP482156		Capacitor (used On Start Kit 482706)   (Replaces: 482156)				$ 102.00
24	487631		Screw (2) (used On Start Kit 482706)		Appelez-nous	-
25	978030		Access Valve (3/4``)				$ 123.53
25	488487		Screw (used On Start Kit 482706)		Appelez-nous	-
25	978026		Access Valve (5/16``)			Immediately	$ 121.04
25	SF5538		Access Valve (3/8``)   (Replaces: 978027)				$ 16.79
25	978028		Access Valve (1/2``)		Appelez-nous	-
25	978029		Access Valve (5/8``)				$ 93.85
25	WP978025		Access Valve (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
