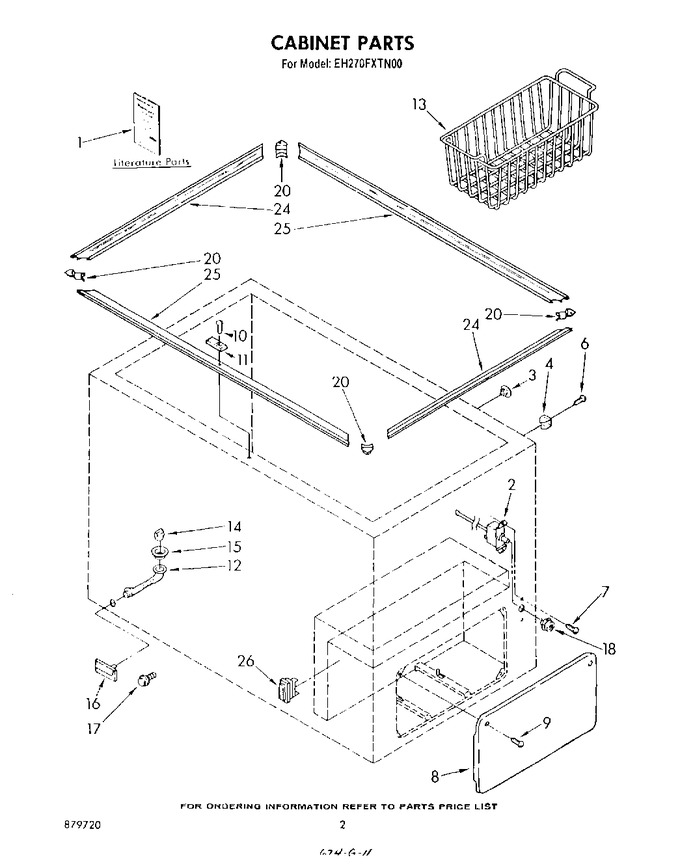

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT879720 | Literature Parts (list, Repair Parts) |
|
- | |||||
| 1 | LIT728786 | Literature Parts (sheet, Tech) |
|
- | |||||
| 1 | LIT730786 | Literature Parts (guide, Use And Care) |
|
- | |||||
| 1 | LIT656493 | Literature Parts (book, Freezing Guide) |
|
- | |||||
| 1 | LIT730773 | Literature Parts (guide, Energy) |
|
- | |||||
| 2 | 728368 | Control, Cold |
|
- | |||||
| 3 | 482584 | Plug Button (2) |
|
- | |||||
| 4 | 730964 | Rod Holder Assembly (2) |
|
- | |||||
| 6 | 681672 | Screw (2) |
|
- | |||||
| 7 | 595022 | Screw |
|
- | |||||
| 8 | 753077 | Door |
|
- | |||||
| 9 | 681318 | Screw |
|
- | |||||
| 10 | 681362 | Screw |
|
- | |||||
| 11 | 730718 | Box, Strike |
|
- | |||||
| 12 | 556624 | Tube, Drain |
|
- | |||||
| 13 | 730212 | Basket |
|
- | |||||
| 14 | 576342 | Plug, Drain |
|
- | |||||
| 15 | 576343 | Ferrule, Drain |
|
- | |||||
| 16 | 730730 | Cover, Drain |
|
- | |||||
| 17 | 594467 | Adapter, Hose |
|
- | |||||
| 18 | 727020 | Knob, Control |
|
- | |||||
| 20 | 730717 | Corner, Front (4) |
|
- | |||||
| 24 | 730716 | Collar, End (2) |
|
- | |||||
| 25 | 730777 | Collar (2) (front & Rear) |
|
- | |||||
| 26 | 833938 | Kit, Terminal Connector |
|
$ 7.62 | |||||
| 26 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | |||||
| 26 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 26 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 26 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 26 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 | ||||
| 26 | 978650 | Kit, Insulation (door Only) |
|
- | |||||
| 26 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 26 | 515393 | Transformer, Stepdown (230-115 Volt) |
|
- | |||||
| 26 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 26 | 556230 | Light, Indicator |
|
- | |||||
| 26 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 |
