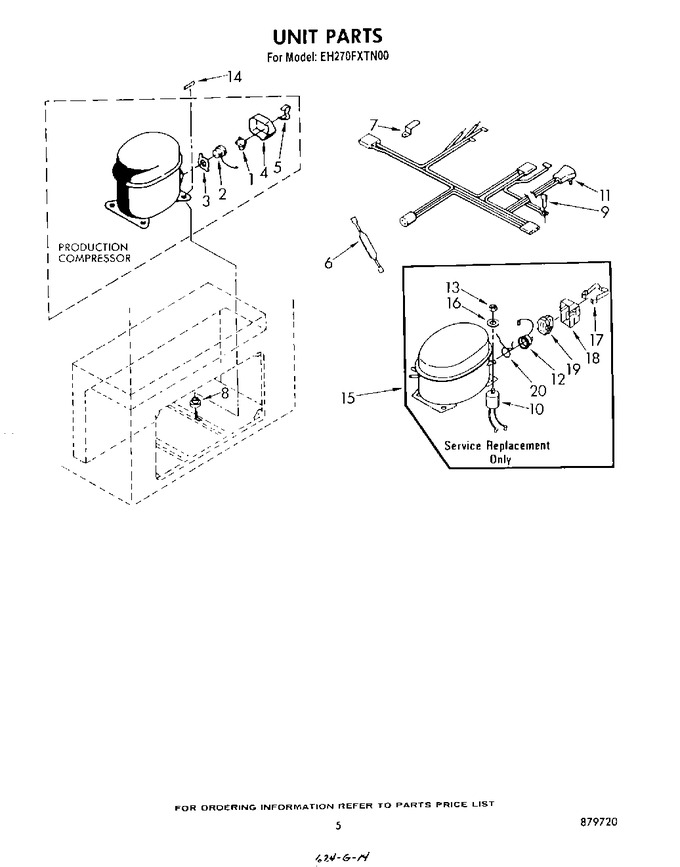

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	753525		Relay		Appelez-nous	-
2	753526		Overload		Appelez-nous	-
3	549086		Spring, Overload		Appelez-nous	-
4	549336		Cover, Terminal		Appelez-nous	-
5	549342		Strap, Cover		Appelez-nous	-
6	728583		Drier		Appelez-nous	-
7	653035		Clip		Appelez-nous	-
8	876811		Grommet (4)   (Replaces: 592185)				$ 7.01
9	595325		Screw, 8-32 X 5/8		Appelez-nous	-
10	483009		Capacitor		Appelez-nous	-
11	586946		Harness, Wiring		Appelez-nous	-
12	483054		Overload		Appelez-nous	-
13	489142		Nut		Appelez-nous	-
14	596798		Clip (4)		Appelez-nous	-
15	482982		Compressor, Service		Appelez-nous	-
16	489143		Washer		Appelez-nous	-
17	938384		Retainer		Appelez-nous	-
18	1108115		Cover		Appelez-nous	-
19	WP2262181		Relay   (Replaces: 1108143)				$ 115.90
20	876764		Valve, Access(3/16``)			Immediately	$ 86.33
20	1114190		Spring		Appelez-nous	-
20	978026		Access Valve (5/16``)			Immediately	$ 121.04
20	SF5538		Access Valve (3/8``)   (Replaces: 978027)				$ 16.79
20	978028		Access Valve (1/2``)		Appelez-nous	-
20	978029		Access Valve (5/8``)				$ 93.85
20	978030		Access Valve				$ 123.53
20	WP978025		Access Valve (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
