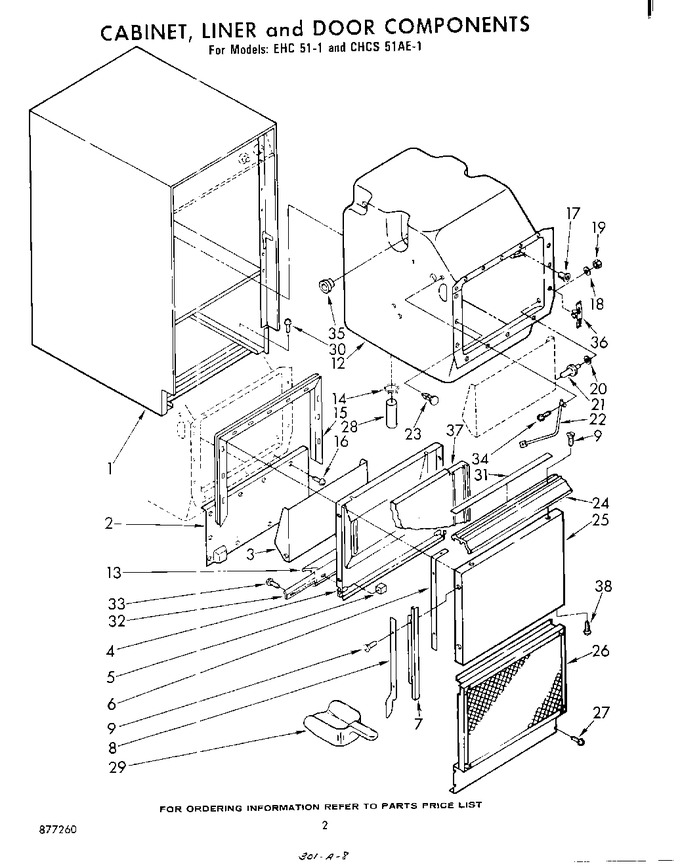

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	756640		Shell		Appelez-nous	-
2	756563		Front, Shell		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	593786		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	755676		Trim, Door (l.s.)		Appelez-nous	-
7	755677		Trim, Door (lower)		Appelez-nous	-
7	755675		Trim, Door (r.s.)		Appelez-nous	-
8	593184		Rail, R.s.		Appelez-nous	-
8	593185		Rail, L.s.		Appelez-nous	-
9	681459		Screw, 8-32 X 5/8 (6)		Appelez-nous	-
12	756350		Liner (includes Illus. 17, 18, 19, 20 & 21)		Appelez-nous	-
13	756347		Gasket, Bottom		Appelez-nous	-
14	596023		Clamp (2)		Appelez-nous	-
15	756663		Gasket		Appelez-nous	-
16	WP965173		Screw, 8-32 X 3/8   (Replaces: 595431)			Immediately	$ 10.68
17	680982		Nut, Molly		Appelez-nous	-
18	680902		Washer		Appelez-nous	-
19	680637		Nut, 1/4 Hex		Appelez-nous	-
20	596005		Washer (2)		Appelez-nous	-
21	596004		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596671		Clip, Panel (2)		Appelez-nous	-
24	756662		Pull, Door		Appelez-nous	-
25	755364		Panel, Exterior (white & Black)		Appelez-nous	-
25	755340		Panel, Exterior (brushed Chrome)		Appelez-nous	-
25	755371		Panel, Exterior (almond & Harvest Gold)		Appelez-nous	-
26	593550		Grille		Appelez-nous	-
27	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 681308)				$ 20.00
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 25.75
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
31	755366		Insert, Handle		Appelez-nous	-
32	563195		Strip, Gasket				$ 6.83
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 681149)			Immediately	$ 7.45
34	681419		Thumbscrew, 10-1/2		Appelez-nous	-
35	596715		Well Nut		Appelez-nous	-
36	596605		Clip, Panel (14)		Appelez-nous	-
37	756655		Insulation, Door		Appelez-nous	-
38	877260		List, Parts		Appelez-nous	-
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
38	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 218.83
38	978026		Valve, Access (5/16``)			Immediately	$ 121.04
38	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
38	978028		Valve, Access (1/2)		Appelez-nous	-
38	978029		Valve Access (5/8``)				$ 93.85
38	978030		Valve, Access (3/4``)				$ 123.53
38	756638		Instructions, Installation		Appelez-nous	-
38	756637		Instructions, Owner`s		Appelez-nous	-
38	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
38	681196		Screw		Appelez-nous	-
38	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
38	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
38	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	350942		Primer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 84.73
38	206925		Leveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
38	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
