02 - Cabinet, Liner And Door Components,

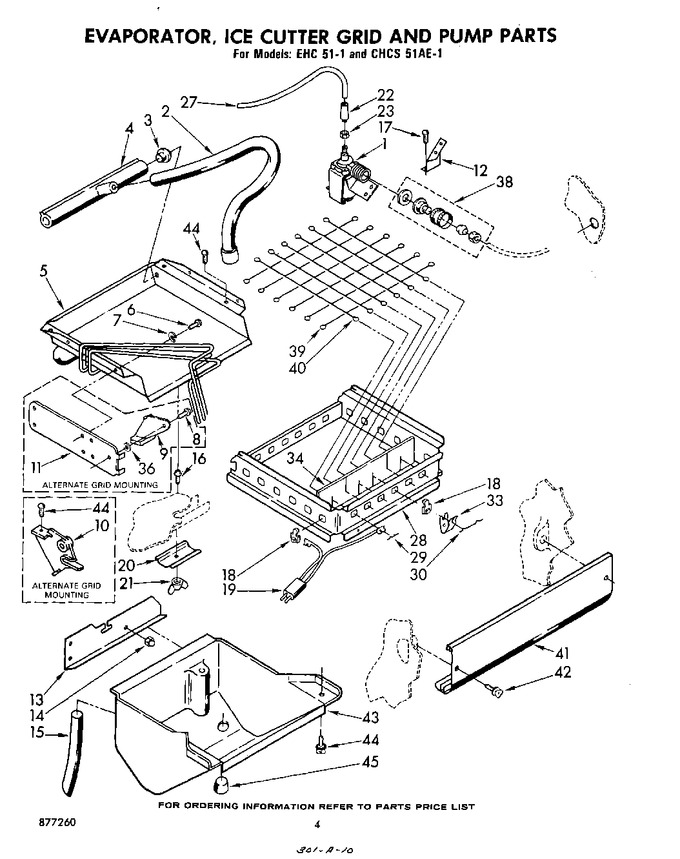

03 - Evaporator, Ice Cutter Grid And Pump


04 - Section


05 - Escutcheon And Control


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	IMV447		Valve, Complete Water   (Replaces: 627277)				$ 63.27
2	585856		Tube, Plastic		Appelez-nous	-
3	564061		Plug (2)		Appelez-nous	-
4	585813		Dispenser, Water		Appelez-nous	-
5	756647		Evaporator		Appelez-nous	-
6	595095		Screw, 10-32 X 3/8		Appelez-nous	-
7	595258		Lockwasher		Appelez-nous	-
8	595057		Screw, 10-32 X 1/2		Appelez-nous	-
9	593164		Bracket, Grid Pan (2)		Appelez-nous	-
10	756564		Bracket, Grid Mounting (2)		Appelez-nous	-
11	593114		Rail, Evaporator (2)		Appelez-nous	-
12	756343		Bracket, Water Valve		Appelez-nous	-
13	585853		Shelf, Water Pan		Appelez-nous	-
14	681432		Nut, Acorn (3)		Appelez-nous	-
15	593369		Hose, Overflow		Appelez-nous	-
16	596037		Screw, 10-32 X 1/2		Appelez-nous	-
17	681305		Screw, 1/4 X 20 X 1/2		Appelez-nous	-
18	598277		Insulator (38)		Appelez-nous	-
19	587639		Cord, Grid		Appelez-nous	-
20	564064		Clamp		Appelez-nous	-
21	595188		Nut, Wing		Appelez-nous	-
22	4387491		Insert,   (Replaces: 841707)				$ 7.41
23	WP627018		Nut & Sleeve Assembly   (Replaces: 627018)				$ 10.36
27	W10823511		Tube, Plastic   (Replaces: 992584)			Immediately	$ 29.17
28	563887		Frame, Grid		Appelez-nous	-
29	587111		Pin (17)		Appelez-nous	-
30	587112		Pin (4)		Appelez-nous	-
33	564072		Clip (19)		Appelez-nous	-
34	563890		Shield		Appelez-nous	-
36	680656		Washer (2)		Appelez-nous	-
38	533238		Adapter (supplied In Literature Package)		Appelez-nous	-
39	588048		Kit (includes 9 Grid Cutter Wires)		Appelez-nous	-
40	588109		Kit (includes 10 Grid Cutter Wires)		Appelez-nous	-
41	593171		Panel, Grid		Appelez-nous	-
42	680930		Thumbscrew 10-32 X 5/8		Appelez-nous	-
43	756659		Pan		Appelez-nous	-
44	681419		Thumbscrew, 10 X 1/2		Appelez-nous	-
45	593572		Stopper, Water Pan		Appelez-nous	-
