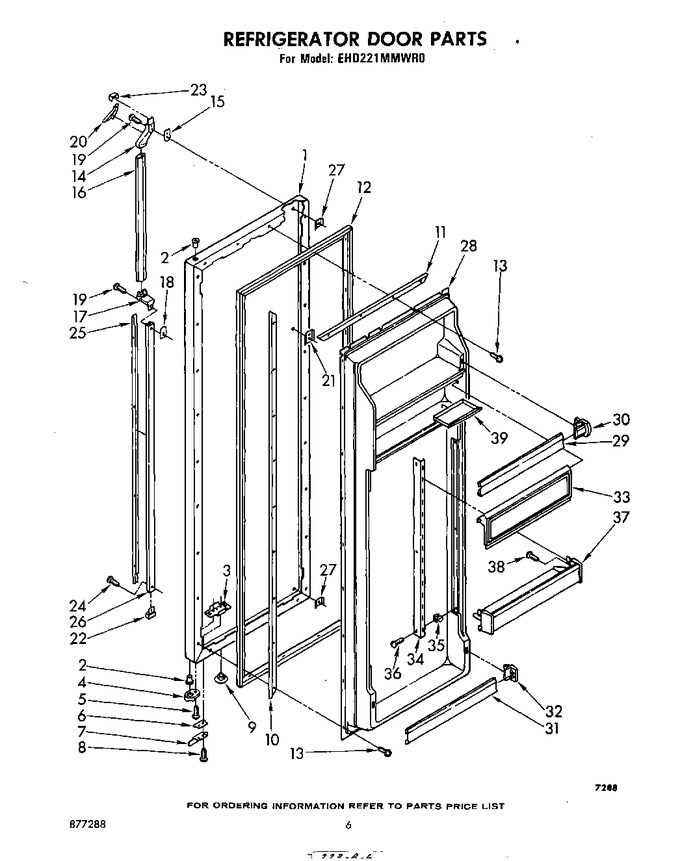

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	942052		Door, Refrigerator (white)		Appelez-nous	-
1	942056		Door, Refrigerator (almond)		Appelez-nous	-
1	942055		Door, Refrigerator (new Avocado)		Appelez-nous	-
1	942054		Door, Refrigerator (golden Harvest)		Appelez-nous	-
1	942053		Door, Refrigerator (coffee)		Appelez-nous	-
2	509929		Cap, Hinge		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	4318165		Door, Closer   (Replaces: 986758)			Immediately	$ 29.74
5	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
6	988421		Shim		Appelez-nous	-
7	988420		Bracket, Door Stop		Appelez-nous	-
8	488549		Screw, 8 X 5/8 (2)		Appelez-nous	-
8	488930		Screw (repair)		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side (2)		Appelez-nous	-
11	836121		Retainer, Top & Bottom (2)		Appelez-nous	-
12	2188404A		Gasket, Refrigerator Door   (Replaces: 939565)				$ 269.26
13	WP681414		Screw, 10-12 X 3/8 (repair)   (Replaces: 488552)			Immediately	$ 8.47
13	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
14	935103		Center End Cap, Handle		Appelez-nous	-
15	935075		Shim, End Center		Appelez-nous	-
16	935087		Handle, Center (golden Harvest)		Appelez-nous	-
16	935086		Handle Center (new Avocado)		Appelez-nous	-
16	935085		Handle, Center (white, Coffee, & Almond)		Appelez-nous	-
17	936930		Center, End Cap Handle		Appelez-nous	-
18	935076		Shim, End Handle		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
20	936623		Insert, Handle		Appelez-nous	-
21	941242		Anchor Screw		Appelez-nous	-
22	935106		End Cap, Retainer		Appelez-nous	-
23	935108		Cover, End Cap		Appelez-nous	-
24	488915		Screw, 6-32 X 1/2		Appelez-nous	-
25	936941		Handle, Extension		Appelez-nous	-
26	936940		Retainer, Insert		Appelez-nous	-
27	WP939101		Anchor, Screw   (Replaces: 939101)				$ 7.88
28	935427		Interior Door Panel, R.s.		Appelez-nous	-
29	988746		Door Shelf, Trim		Appelez-nous	-
30	982123		Trim Retainer, Door (2)		Appelez-nous	-
31	988747		Door Shelf Trim		Appelez-nous	-
32	935248		Trim Retainer, Door (2)		Appelez-nous	-
33	935352		Compartment, Door Utility		Appelez-nous	-
34	983804		Shelf Ladder, Door (2)		Appelez-nous	-
35	537095		Clip, Expansion (6)		Appelez-nous	-
36	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 488320)			Immediately	$ 8.28
37	935428		Door Shelf, Cantilever (3)		Appelez-nous	-
38	488929		Screw, 4-20 X 3/16 (2)		Appelez-nous	-
39	877288		List, Parts		Appelez-nous	-
39	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
39	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
39	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
39	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
39	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
39	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
39	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
39	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
39	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
39	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
39	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
39	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
39	942072		Energy Guide		Appelez-nous	-
39	942030		Guide, Use & Care		Appelez-nous	-
39	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
39	520747		Tray, Butter		Appelez-nous	-
39	350942		Primer White (13 Oz. Spray Can)				$ 94.14
39	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
39	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
39	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
39	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
39	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
39	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
39	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
39	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
39	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
39	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
39	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
39	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
39	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
39	261888		Enamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
39	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
39	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 96.42
39	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
39	876029		Kit, Foam Slab (30`` X 32-1/2`` 1-1/2``)		Appelez-nous	-
39	511881		Lacquer, Aluminum (12 Oz. Spray Can)				$ 309.28
39	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
