SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Refrigerator Door , Lit/optional


05 - Freezer Door


06 - Freezer Liner


07 - Dispenser Front


08 - Airflow


09 - Airflow And Control


10 - Refrigerator Interior


11 - Unit


12 - Ice Maker

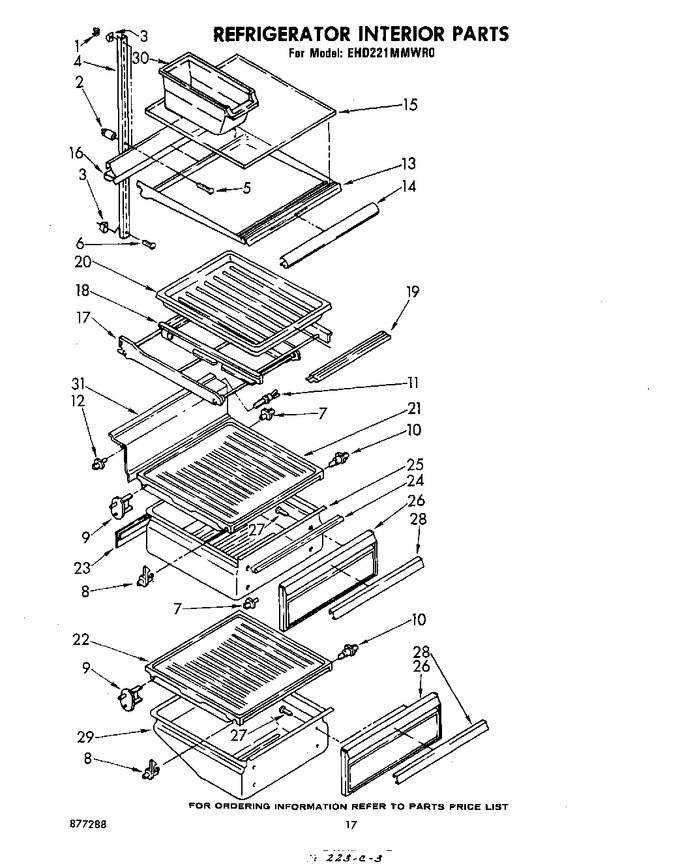

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	983604		Anchor, Screw (4)		Appelez-nous	-
2	512923		Grommet (2)		Appelez-nous	-
3	520965		Support, Ladder (6)				$ 28.22
4	936653		Ladder, Shelf (2)		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4 (6)		Appelez-nous	-
6	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	488980		Screw (repair)		Appelez-nous	-
7	936591		Stud				$ 6.18
8	984779		Stud, Shelf (2)		Appelez-nous	-
9	937521		Stud, Shelf (2)		Appelez-nous	-
10	208500		Stud, Shelf (2)		Appelez-nous	-
11	521878		Stud, Shelf (5)		Appelez-nous	-
12	937513		Stud, Shelf (5)		Appelez-nous	-
13	936787		Shelf, Cantilever		Appelez-nous	-
14	849021		Shelf, Trim		Appelez-nous	-
15	985516		Glass, Cantilever Shelf		Appelez-nous	-
16	849028		Reflector, Shelf		Appelez-nous	-
17	936793		Frame, Cantilever		Appelez-nous	-
18	985518		Rollout Shelf		Appelez-nous	-
19	849021		Trim, Shelf		Appelez-nous	-
20	935417		Bin, Roll-out		Appelez-nous	-
21	935120		Pan Slide & Cover		Appelez-nous	-
22	935119		Pan Slide & Cover		Appelez-nous	-
23	982588		Gasket, Rear		Appelez-nous	-
24	982587		Gasket, Front		Appelez-nous	-
25	841316		Pan, Crisper		Appelez-nous	-
26	935333		Front, Pan (crisper)		Appelez-nous	-
26	935335		Front, Pan (meats)		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488783)			Immediately	$ 7.45
27	488132		Screw (repair)		Appelez-nous	-
28	984750		Overlay (2)		Appelez-nous	-
29	840037		Pan (meat)		Appelez-nous	-
30	WP982704		Container   (Replaces: 935139)				$ 29.30
31	938572		Light Lens, Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
