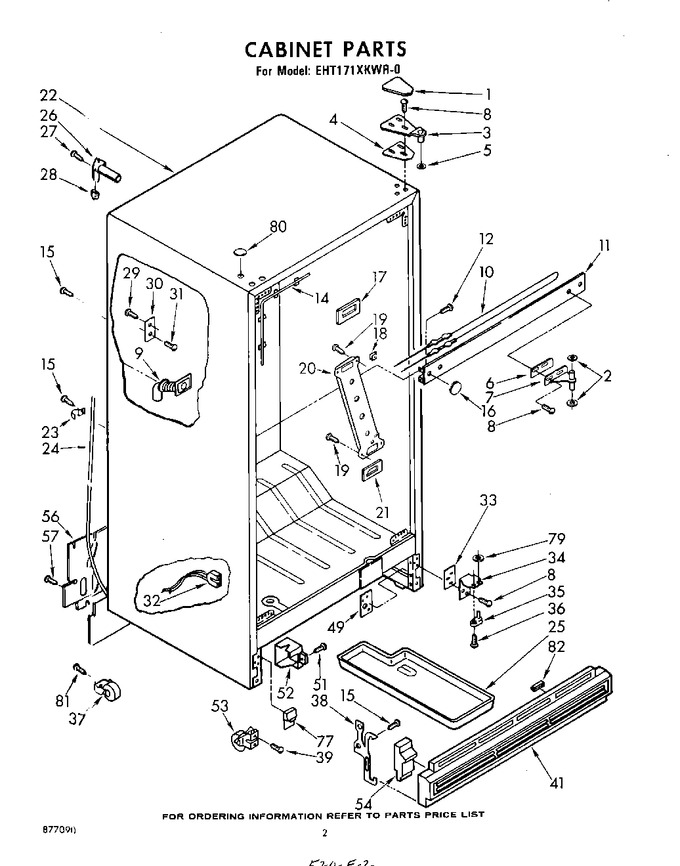

02 - Cabinet
03 - Liner
04 - Breaker And Partition
05 - Unit
06 - Door , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 1 | 989897 | Cover, Hinge (new Avocado) |
|
- | |||||
| 1 | 989896 | Cover, Hinge (golden Harvest) |
|
- | |||||
| 1 | 989194 | Cover, Hinge (almond) |
|
- | |||||
| 1 | 989895 | Cover, Hinge (coffee) |
|
- | |||||
| 2 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
Immediately | $ 6.80 | ||||
| 3 | 842038 | Hinge & Shim (top) |
|
- | |||||
| 4 | 836151 | Shim, Top Hinge (.030) |
|
- | |||||
| 5 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 6 | 836155 | Shim (.030) |
|
- | |||||
| 7 | 836152 | Hinge & Shim (center) |
|
- | |||||
| 8 | 488949 | Screw, 12-14 X 3/4 (repair) |
|
- | |||||
| 8 | WP999367 | Screw, 10-32 X 3/4 (Replaces: 488948) |
|
$ 7.70 | |||||
| 9 | 836096 | Fitting, Drain |
|
- | |||||
| 10 | 989256 | Heater, Mullion |
|
- | |||||
| 11 | 836067 | Rail, Center (white) |
|
- | |||||
| 11 | 989908 | Rail, Center (coffee) |
|
- | |||||
| 11 | 989911 | Rail, Center (almond) |
|
- | |||||
| 11 | 989909 | Rail, Center (golden Harvest) |
|
- | |||||
| 11 | 989910 | Rail, Center (new Avocado) |
|
- | |||||
| 12 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 12 | 487470 | Screw, 10 X 3/8 |
|
- | |||||
| 14 | 531670 | Stile, Heater |
|
- | |||||
| 15 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 16 | 989193 | Plug, Hole (2) (almond) |
|
- | |||||
| 16 | 989883 | Plug, Hole (2) (new Avocado) |
|
- | |||||
| 16 | 989882 | Plug, Hole (2) (golden Harvest) |
|
- | |||||
| 16 | 989881 | Plug, Hole (2) (coffee) |
|
- | |||||
| 16 | 835974 | Plug, Hole (2) (white) |
|
- | |||||
| 17 | 836565 | Gasket Inlet |
|
- | |||||
| 18 | 488564 | Nut, Speed (4) |
|
- | |||||
| 19 | WP98165 | Screw, 8 X 5/8 (3) (Replaces: 488401) |
|
$ 7.71 | |||||
| 20 | 934057 | Duct, Air |
|
- | |||||
| 21 | 934058 | Gasket Outlet |
|
- | |||||
| 22 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 23 | 836077 | Clamp |
|
- | |||||
| 24 | 8316810 | Tube, Drain (Replaces: 509638) |
|
$ 113.15 | |||||
| 25 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 26 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.33 | ||||
| 27 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 7.71 | |||||
| 28 | WP487996 | Cap (Replaces: 487996) |
|
$ 7.80 | |||||
| 29 | 488684 | Screw, 8-32 X 1-1/2 |
|
- | |||||
| 30 | 547603 | Strap, Ground |
|
- | |||||
| 31 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 10.26 | |||||
| 32 | 548734 | Wiring, Water Valve |
|
- | |||||
| 33 | 836196 | Shim (bottom) (.030) |
|
- | |||||
| 34 | 836159 | Butt, Hinge |
|
- | |||||
| 35 | 654366 | Pin, Hinge |
|
$ 27.15 | |||||
| 36 | 488714 | Screw 10-32 X 5/16 |
|
$ 5.48 | |||||
| 37 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 37.96 | |||||
| 38 | 844614 | Support, Grille (2) |
|
- | |||||
| 39 | 488681 | Screw, 5/16-24 X 1-1/4 |
|
- | |||||
| 41 | 989941 | Grille, Exterior (coffee) |
|
- | |||||
| 41 | 989943 | Grille, Exterior (new Avocado) |
|
- | |||||
| 41 | 989947 | Grille, Exterior (almond) |
|
- | |||||
| 41 | 989945 | Grille, Exterior (golden Harvest) |
|
- | |||||
| 41 | 841670 | Grille, Exterior (white) |
|
- | |||||
| 49 | 836162 | Plate, Tap (bottom) |
|
- | |||||
| 51 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 7.45 | ||||
| 52 | 549947 | Box, Junction |
|
- | |||||
| 53 | 981127 | Roller, Front (2) |
|
- | |||||
| 54 | 836372 | Insert, Air Baffle |
|
- | |||||
| 56 | 850459 | Cover |
|
- | |||||
| 57 | WP488729 | Screw (Replaces: 488964) |
|
Immediately | $ 7.45 | ||||
| 77 | 989931 | Filler Grille (almond) |
|
- | |||||
| 77 | 989928 | Filler, Grille (coffee) |
|
- | |||||
| 77 | 989930 | Filler, Grille (new Avocado) |
|
- | |||||
| 77 | 989929 | Filler, Grille (golden Harvest) |
|
- | |||||
| 77 | 838535 | Filler Grille (white) |
|
- | |||||
| 79 | WP487802 | Washer (Replaces: 488723) |
|
Immediately | $ 7.12 | ||||
| 80 | 989195 | Plug, Hole (3) (almond) |
|
- | |||||
| 80 | 842031 | Plug, Hole (3) (white) |
|
- | |||||
| 80 | 989875 | Plug, Hole (3) (coffee) |
|
- | |||||
| 80 | 989877 | Plug, Hole (3) (new Avocado) |
|
- | |||||
| 80 | 989876 | Plug, Hole (3) (golden Harvest) |
|
- | |||||
| 81 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 82 | 546131 | Bumper, Grille (2) |
|
- |
