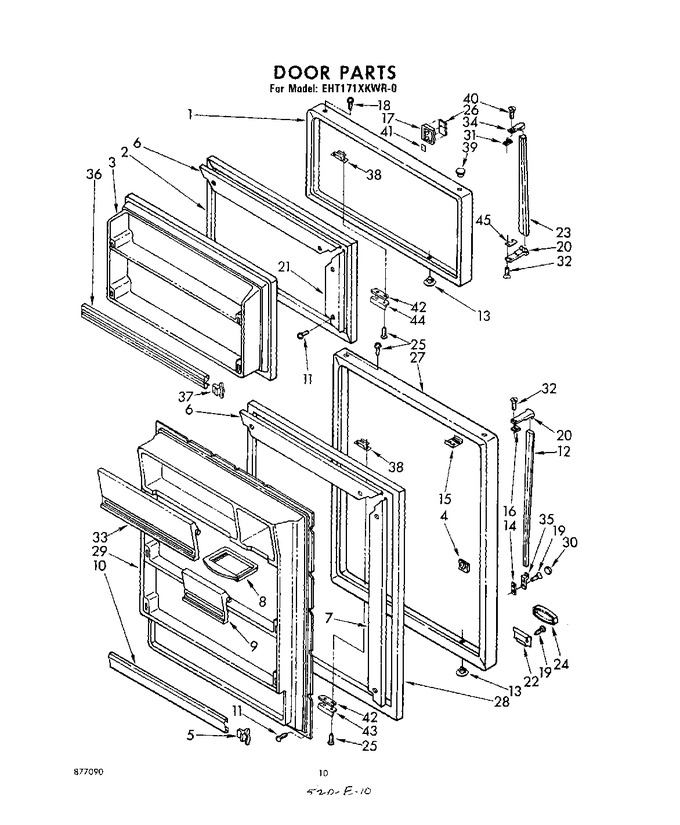

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Liner
04 - Breaker And Partition
05 - Unit
06 - Door , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 990638 | Door, Freezer (almond) |
|
- | |||||
| 1 | 988531 | Door, Freezer (white) |
|
- | |||||
| 1 | 990635 | Door, Freezer (coffee) |
|
- | |||||
| 1 | 990636 | Door, Freezer (new Avocado) |
|
- | |||||
| 1 | 990637 | Door, Freezer (golden Harvest) |
|
- | |||||
| 2 | 2188460A | Gasket, Freezer Door (Replaces: 986703) |
|
$ 208.36 | |||||
| 3 | 481966 | Panel, Interior |
|
- | |||||
| 4 | 991739 | Plate, Tap (2) |
|
- | |||||
| 5 | 839904 | Retainer, Trim (4) |
|
$ 5.65 | |||||
| 6 | 836118 | Retainer, Top & Bottom (2) |
|
- | |||||
| 7 | 836117 | Retainer, Side (2) |
|
- | |||||
| 8 | 520747 | Tray, Butter |
|
- | |||||
| 9 | 984845 | Door, Butter |
|
- | |||||
| 10 | 936881 | Trim, Shelf (2) |
|
- | |||||
| 11 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 11 | WP681414 | Screw, 10-12 X 3/8 (repair) (Replaces: 488552) |
|
Immediately | $ 7.62 | ||||
| 12 | 982946 | Handle, Center |
|
- | |||||
| 13 | 989880 | Plug, Hole (2) (new Avocado) |
|
- | |||||
| 13 | 534927 | Plug, Hole (2) (white) |
|
- | |||||
| 13 | 989878 | Plug, Hole (2) (coffee) |
|
- | |||||
| 13 | 989197 | Plug, Hole (2) (almond) |
|
- | |||||
| 13 | 989879 | Plug, Hole (2) (golden Harvest) |
|
- | |||||
| 14 | 992872 | Shim, Handle |
|
- | |||||
| 15 | 987822 | Plate, Tap (2) |
|
- | |||||
| 16 | 845298 | Spacer, Handle |
|
- | |||||
| 17 | 849310 | Escutcheon, Nameplate |
|
- | |||||
| 18 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 18 | 488925 | Screw (repair) |
|
- | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 20 | 983543 | Cap, Handle |
|
- | |||||
| 21 | 836119 | Retainer, Side (2) |
|
- | |||||
| 22 | 843213 | Clip, Medallion |
|
- | |||||
| 23 | 982944 | Handle, Center |
|
- | |||||
| 24 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 24 | 848382 | Medallion (white) |
|
- | |||||
| 24 | 989901 | Medallion (coffee) |
|
- | |||||
| 24 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 24 | 989904 | Medallion (almond) |
|
- | |||||
| 25 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 25 | 488930 | Screw (repair) |
|
- | |||||
| 26 | 937807 | Insert, Nameplate |
|
- | |||||
| 27 | 937718 | Door, Refrigerator (almond) |
|
- | |||||
| 27 | 937714 | Door, Refrigerator (white) |
|
- | |||||
| 27 | 937715 | Door, Refrigerator (coffee) |
|
- | |||||
| 27 | 937717 | Door, Refrigerator (new Avocado) |
|
- | |||||
| 27 | 937716 | Door, Refrigerator (golden Harvest) |
|
- | |||||
| 28 | 2188450A | Gasket, Refrigerator Door (Replaces: 986702) |
|
$ 255.68 | |||||
| 29 | 482374 | Panel, Interior |
|
- | |||||
| 30 | WP1101634 | Cover, Handle Screw (Replaces: 981182) |
|
$ 8.71 | |||||
| 31 | 848338 | Shim, Handle |
|
- | |||||
| 32 | 488923 | Screw (repair) |
|
- | |||||
| 32 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.18 | |||||
| 33 | 985007 | Utility, Door |
|
- | |||||
| 34 | 983544 | Cap, Handle |
|
- | |||||
| 35 | WP2183139 | Cap, Handle (Replaces: 983542) |
|
Immediately | $ 46.78 | ||||
| 36 | 837789 | Trim, Shelf (2) |
|
- | |||||
| 37 | 839975 | Retainer, Trim (4) |
|
$ 5.84 | |||||
| 38 | 988402 | Plate, Tap |
|
- | |||||
| 39 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 7.37 | ||||
| 39 | 989892 | Plug, Hole (coffee) |
|
- | |||||
| 39 | 989894 | Plug, Hole (new Avocado) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 7.37 | ||||
| 40 | WP488920 | Screw, 6-32 X 5/8 (Replaces: 488926) |
|
$ 7.18 | |||||
| 40 | 488927 | Screw (repair) |
|
- | |||||
| 41 | 991259 | Tape Strip |
|
- | |||||
| 42 | 836158 | Shim, Bracket & Door |
|
- | |||||
| 43 | 836163 | Bracket, Door Stop |
|
- | |||||
| 44 | 987999 | Bracket, Door Stop |
|
- | |||||
| 45 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 45 | 479502 | Tape, Vinyl (1/4`` X 108``) |
|
$ 66.77 | |||||
| 45 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 218.83 | |||||
| 45 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 45 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 45 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 45 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 45 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 45 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 45 | 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | |||||
| 45 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | ||||
| 45 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | |||||
| 45 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 45 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 45 | 936760 | Guide, Use & Care |
|
- | |||||
| 45 | 877090 | List, Parts |
|
- | |||||
| 45 | 938411 | Energy Guide |
|
- | |||||
| 45 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 45 | 987867 | Spacer |
|
- | |||||
| 45 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 84.73 | |||||
| 45 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 45 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | |||||
| 45 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 45 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 45 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 45 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 45 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 45 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 45 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 45 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 45 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | |||||
| 45 | 511881 | Lacquer, Aluminum (12 Oz. Spray Can) |
|
$ 278.35 | |||||
| 45 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 | |||||
| 45 | 799908 | Silicone (spray) |
|
- | |||||
| 45 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 45 | 261886 | Enamel, Coffee (13 Oz. Spray Can) |
|
- | |||||
| 45 | 261888 | Enamel, New Avocado (13 Oz. Spray Can) |
|
- | |||||
| 45 | 261890 | Enamel, Golden Harvest (13 Oz. Spray Can) |
|
- | |||||
| 45 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 |
