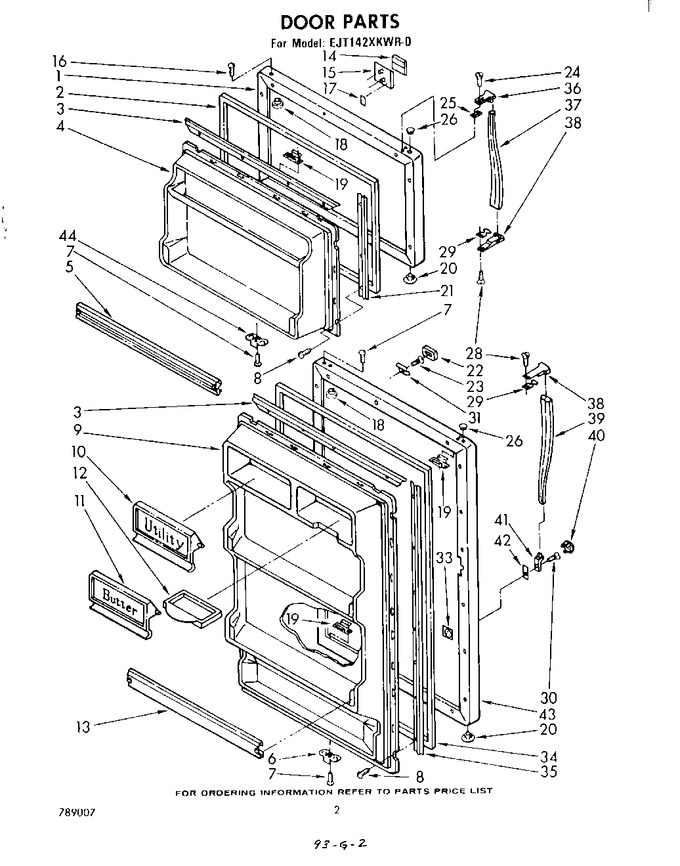

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944101		Freezer Door Panel (white)		Appelez-nous	-
1	944105		Freezer Door Panel (almond)		Appelez-nous	-
1	944104		Freezer Door Panel (new Avocado)		Appelez-nous	-
1	944103		Freezer Door Panel (golden Harvest)		Appelez-nous	-
1	944102		Freezer Door Panel (coffee)		Appelez-nous	-
2	WP2188456A		Freezer Door Gasket   (Replaces: 937001)				$ 258.49
3	935759		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
4	939097		Interior Door Panel (freezer)		Appelez-nous	-
5	939274		Trim, Door Shelf		Appelez-nous	-
6	944036		Bracket, Door Stop		Appelez-nous	-
7	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
7	488930		Screw (repair)		Appelez-nous	-
8	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
8	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
9	940599		Interior Door Panel (refrigerator)		Appelez-nous	-
10	940601		Door, Utility		Appelez-nous	-
11	940600		Door, Butter		Appelez-nous	-
12	520747		Tray, Butter		Appelez-nous	-
13	939981		Trim, Door Shelf (2)		Appelez-nous	-
14	945120		Nameplate		Appelez-nous	-
15	849310		Escutcheon, Nameplate		Appelez-nous	-
16	488925		Screw (repair)		Appelez-nous	-
16	488915		Screw, 6-32 X 1/2		Appelez-nous	-
17	991259		Tape		Appelez-nous	-
18	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
19	943185		Tap Plate		Appelez-nous	-
20	989878		Hole Plug (2) (coffee)		Appelez-nous	-
20	989197		Hole Plug (2) (almond)		Appelez-nous	-
20	989880		Hole Plug (2) (new Avocado)		Appelez-nous	-
20	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
20	534927		Hole Plug (2) (white)		Appelez-nous	-
21	935775		Gasket Retainer, Side (2)		Appelez-nous	-
22	989904		Medallion (almond)		Appelez-nous	-
22	989903		Medallion (golden Harvest)		Appelez-nous	-
22	848382		Medallion (white)		Appelez-nous	-
22	989902		Medallion (new Avocado)		Appelez-nous	-
22	989901		Medallion (coffee)		Appelez-nous	-
23	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
24	488927		Screw (repair)		Appelez-nous	-
24	WP488920		Screw, 6-32 X 5/8   (Replaces: 488926)				$ 7.98
25	943187		Shim, Handle End				$ 25.14
26	989894		Hole Plug (new Avocado)		Appelez-nous	-
26	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
26	989196		Hole Plug (almond)		Appelez-nous	-
26	989892		Hole Plug (coffee)		Appelez-nous	-
26	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
28	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
28	488923		Screw (repair)		Appelez-nous	-
29	943188		Spacer, Door Handle				$ 7.80
30	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
31	843213		Clip, Medallion		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
34	2188445A		Refrigerator Door Gasket   (Replaces: 935761)				$ 197.35
35	935760		Gasket Retainer, Side (2)		Appelez-nous	-
36	WP2191882		Handle End,   (Replaces: 943184)				$ 62.77
37	982978		Handle, Center		Appelez-nous	-
38	943182		Handle End		Appelez-nous	-
39	982946		Handle, Center		Appelez-nous	-
40	WP1101634		Cover, Screw   (Replaces: 981182)				$ 9.68
41	WP2183139		Handle, End   (Replaces: 983542)			Immediately	$ 51.98
42	992872		Shim, Handle End		Appelez-nous	-
43	944099		Refrigerator Door (almond)		Appelez-nous	-
43	944098		Refrigerator Door (new Avocado)		Appelez-nous	-
43	944097		Refrigerator Door (golden Harvest)		Appelez-nous	-
43	944096		Refrigerator Door (coffee)		Appelez-nous	-
43	944095		Refrigerator Door (white)		Appelez-nous	-
44	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
44	943002		Energy Guide		Appelez-nous	-
44	940611		Guide, Use & Care		Appelez-nous	-
44	789007		List, Parts		Appelez-nous	-
44	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
44	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
44	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
44	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
44	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
44	833938		Kit, Terminal Connector				$ 8.47
44	945700		Consumer Buy Guide		Appelez-nous	-
44	939134		Tech Sheet		Appelez-nous	-
44	944035		Bracket, Door Stop		Appelez-nous	-
44	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
44	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
44	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
44	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
44	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
44	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
44	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
44	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
44	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
44	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
44	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
44	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
44	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
44	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
44	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
44	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
44	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
44	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
44	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	511881		Xlacquer, Aluminum (13 Oz. Spray Can)				$ 309.28
