Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 939015 Cover, Ice Tray Appelez-nous -
2 WP841180A Ice Tray (2)   (Replaces: 841180) In-Stock Immediately $ 47.84

3 WP982704 Utility Container   (Replaces: 984899) Special Order $ 32.55

4 935750 Shelf, Pullout Appelez-nous -
6 940591 Crisper Cover Appelez-nous -
7 940590 Crisper Pan (2) Appelez-nous -
8 849260 Trim, Shelf Front Appelez-nous -
9 937154 Overlay, Pan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

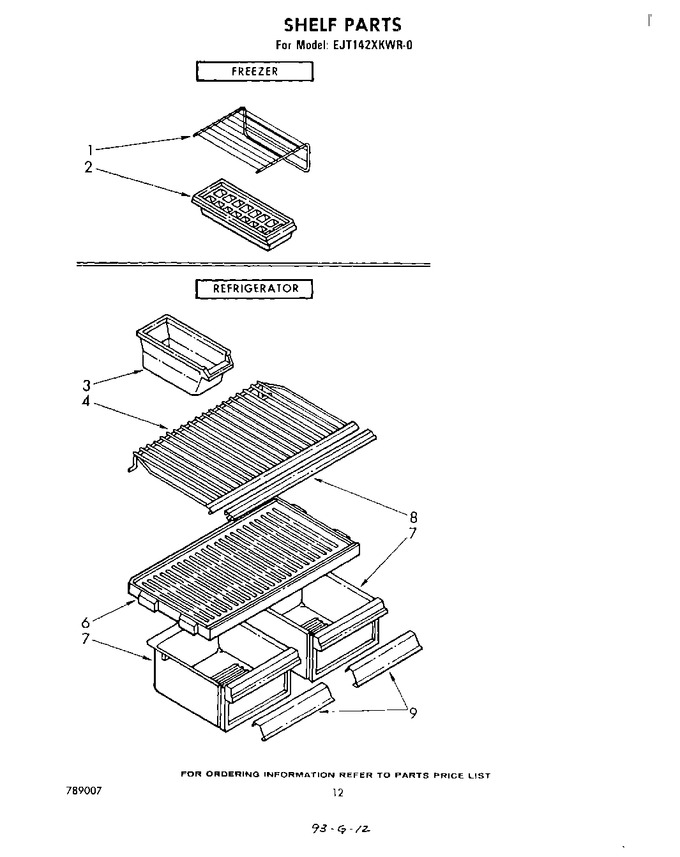

Diagram for EJT142XKWR0
