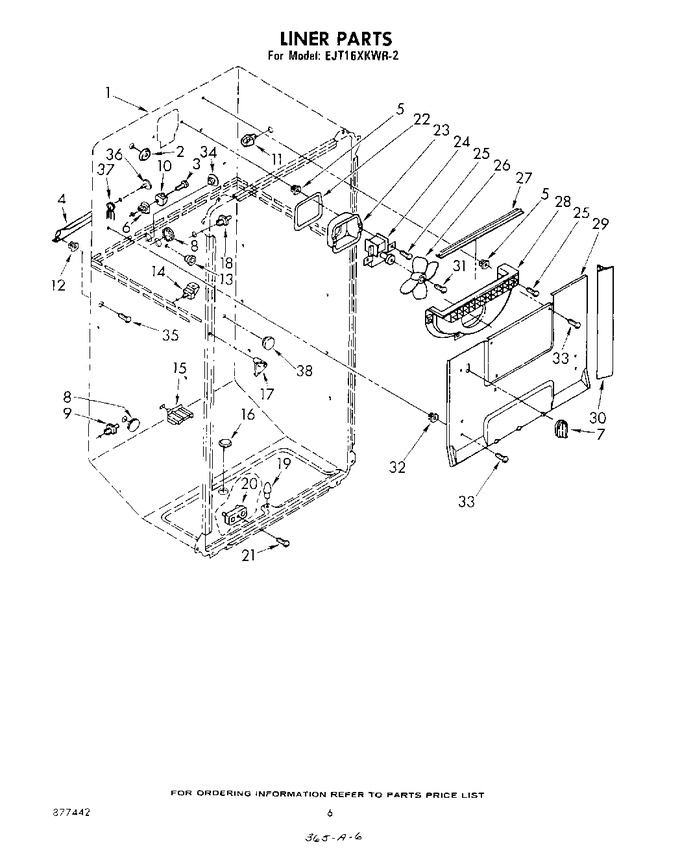

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	534348		Grommet, Water Inlet		Appelez-nous	-
3	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 7.45
4	985484		Reinforcement Shelf Ladder (2)		Appelez-nous	-
5	842339		Grommet		Appelez-nous	-
6	538449		Grommet		Appelez-nous	-
7	659776		Hole, Plug		Appelez-nous	-
8	519890		Hole Plug (5)		Appelez-nous	-
9	536475		Stud, Crisper Cover (2)				$ 7.28
10	836492		Stud, Saddle (l.s.)		Appelez-nous	-
11	523263		Stud, Saddle (r.s.)		Appelez-nous	-
12	509812		Grommet (3)		Appelez-nous	-
13	851020		Grommet, Wiring		Appelez-nous	-
14	836374		Stud, Retainer (4)		Appelez-nous	-
15	836412		Stud, Crisper Support		Appelez-nous	-
16	835370		Drain Cover		Appelez-nous	-
17	836040		Spacer, Liner (2)		Appelez-nous	-
18	529758		Stud, Shelf (2)		Appelez-nous	-
19	836409		Post, Grommet		Appelez-nous	-
20	539760		Spacer, Liner (8)		Appelez-nous	-
21	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.13
22	836475		Gasket, Motor Cover		Appelez-nous	-
23	836474		Cover, Motor		Appelez-nous	-
24	482731		Motor, Fan   (Replaces: 548697)			Immediately	$ 83.12
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
26	WP1100938		Blade, Fan   (Replaces: 548041)				$ 83.03
27	935068		Gasket, Sealing		Appelez-nous	-
28	935067		Scroll, Fan		Appelez-nous	-
29	983991		Cover, Evaporator		Appelez-nous	-
30	981749		Gasket, Cover (2) (15-3/4``)		Appelez-nous	-
31	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
32	848445		Grommet (4)		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.45
34	659598		Hole Plug (2)		Appelez-nous	-
35	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 7.71
36	850738		Cap, Receptacle		Appelez-nous	-
37	481658		Wiring, Ice Maker		Appelez-nous	-
38	943920		Grommet Drain Fitting		Appelez-nous	-
