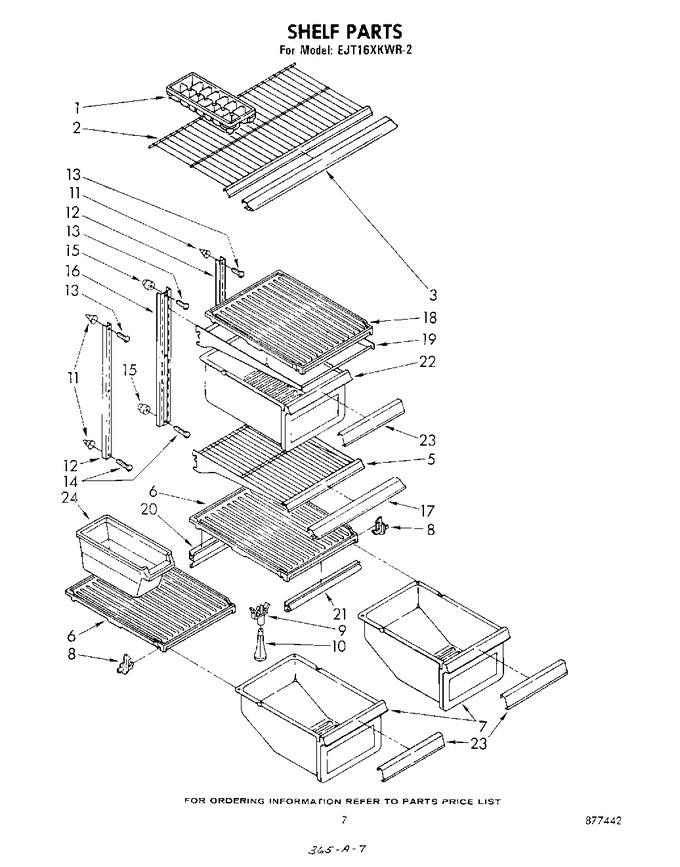

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 43.06
2	934037		Shelf, Freezer		Appelez-nous	-
3	849260		Trim, Shelf Front		Appelez-nous	-
5	935138		Shelf, Cantilever (3)		Appelez-nous	-
6	843546		Cover, Pan Slide (2)		Appelez-nous	-
7	983748		Pan, Crisper (2)		Appelez-nous	-
8	836423		Stud, Crisper Cover (2)		Appelez-nous	-
9	848562		Support, Cover				$ 24.30
10	836410		Post, Cover				$ 5.84
11	520965		Support, Ladder (4)				$ 28.22
12	936651		Shelf, Ladder (2)		Appelez-nous	-
13	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
14	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
14	488980		Screw (repair)		Appelez-nous	-
15	520959		Support, Ladder (2)		Appelez-nous	-
16	936652		Shelf, Ladder		Appelez-nous	-
17	938856		Trim, Shelf Front		Appelez-nous	-
18	843547		Cover, Pan Slide		Appelez-nous	-
19	936257		Pan Shelf, Cantilever		Appelez-nous	-
20	982157		Gasket, Rear (2)		Appelez-nous	-
21	982159		Gasket, Front (2)		Appelez-nous	-
22	983864		Pan, Meat		Appelez-nous	-
23	986967		Overlay, Pan (3)		Appelez-nous	-
24	WP982704		Container, Utility   (Replaces: 984899)				$ 29.30
