02 - Cabinet


03 - Liner


04 - Door


05 - Unit


06 - Shelf , Parts Not Illustrated

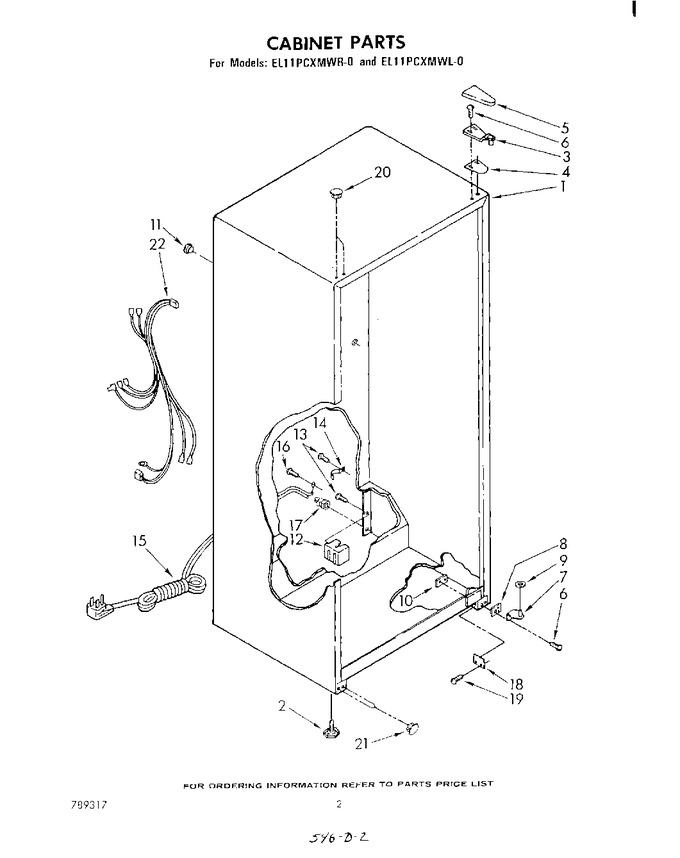

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 17.43
3	1100513		Shim, Hinge Top		Appelez-nous	-
4	1100509		Shim, Hinge		Appelez-nous	-
5	989194		Hinge Cover (almond)		Appelez-nous	-
5	842010		Hinge Cover (white)		Appelez-nous	-
6	488949		Screw (repair)		Appelez-nous	-
6	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.70
7	944778		Hinge, Bottom L.h.		Appelez-nous	-
7	944776		Hinge, Bottom R.h.		Appelez-nous	-
8	935738		Shim (repair)		Appelez-nous	-
8	935737		Shim, Bottom Hinge		Appelez-nous	-
9	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
10	935743		Tap Plate, Bottom		Appelez-nous	-
11	938284		Grommet, Wiring		Appelez-nous	-
12	937068		Box, Junction		Appelez-nous	-
13	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
14	939009		Clamp		Appelez-nous	-
15	850626		Cord, Service		Appelez-nous	-
16	488474		Screw, 8-32 X 3/8		Appelez-nous	-
17	544108		Bushing, Strain Relief		Appelez-nous	-
18	935707		Tube, Rail Cover (white)		Appelez-nous	-
18	935711		Tube, Rail Cover (almond)		Appelez-nous	-
19	488895		Screw		Appelez-nous	-
20	842031		Hole Plug (2) (white)		Appelez-nous	-
20	989195		Hole Plug (2) (almond)		Appelez-nous	-
21	941416		Hole, Plug (2) (white)		Appelez-nous	-
21	941417		Hole, Plug (2) (almond)		Appelez-nous	-
22	1103791		Cabinet Wiring Assembly		Appelez-nous	-
