02 - Cabinet

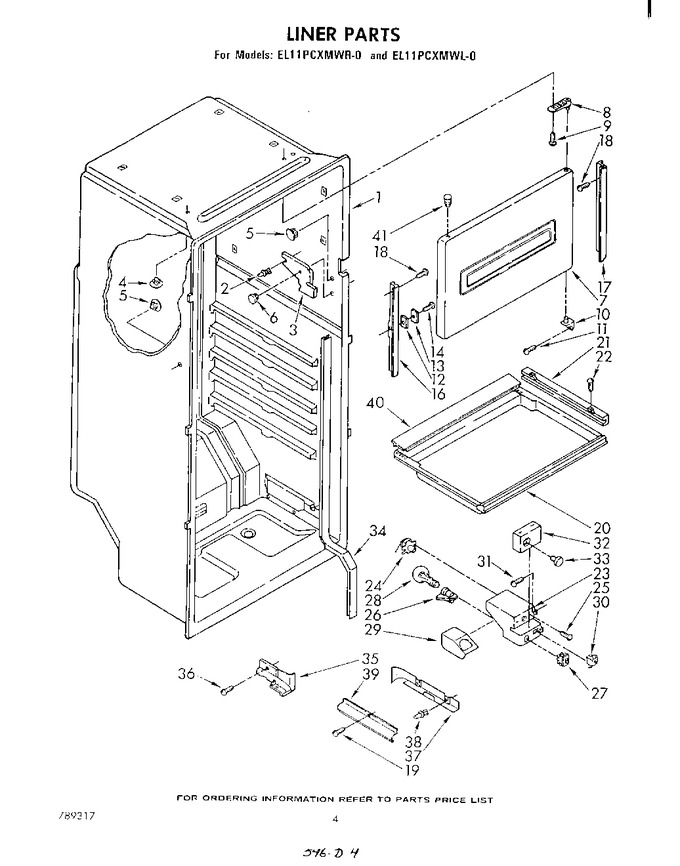

03 - Liner
04 - Door
05 - Unit
06 - Shelf , Parts Not Illustrated
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet-plastic |
|
$ 12.42 | |||||
| 3 | 944815 | Shield, Electrical |
|
- | |||||
| 4 | 845294 | Hole Plug |
|
- | |||||
| 5 | 845646 | Hole Plug |
|
- | |||||
| 6 | 944818 | Grommet, Wiring |
|
- | |||||
| 7 | 1103764 | Door, Evaporator |
|
- | |||||
| 8 | 992778 | Hinge, Evaporator Door |
|
- | |||||
| 9 | W11693756 | Screw, 8 X 5/8 (Replaces: 487582) |
|
Immediately | $ 14.76 | ||||
| 10 | 1103729 | Support, Evaporator Door |
|
- | |||||
| 11 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 12 | 839328 | Plate, Magnet (2) |
|
- | |||||
| 13 | 944829 | Magnet |
|
- | |||||
| 14 | 488740 | Screw, 8 X 1-9/16 |
|
- | |||||
| 16 | 1103780 | Evaporator Door, Baffle Magnet |
|
- | |||||
| 17 | 1103779 | Evaporator Door, Baffle Side |
|
- | |||||
| 18 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 19 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 20 | 944904 | Chiller Tray Assembly |
|
- | |||||
| 21 | 943615 | Chiller Slide (2) |
|
- | |||||
| 22 | WP488163 | Screw, 8 X 13/16 (4) (Replaces: 488208) |
|
$ 7.92 | |||||
| 23 | 943628 | Box, Control |
|
- | |||||
| 24 | 944822 | Thermostat & Barrier Assembly |
|
- | |||||
| 25 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 11.40 | |||||
| 26 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 27 | 938049 | Switch, Toggle |
|
- | |||||
| 28 | W11679940 | Light Bulb (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 29 | 937230 | Light Shield |
|
- | |||||
| 30 | W11384469 | Rocker Arm Switch (Replaces: 549702) |
|
Immediately | $ 39.09 | ||||
| 31 | WP489069 | Screw, 8 X 1/2 (Replaces: 488874) |
|
Immediately | $ 8.40 | ||||
| 32 | 944840 | Cover, Control Box |
|
- | |||||
| 33 | 845233 | Knob, Control |
|
- | |||||
| 34 | 937032 | Cover, Tube (rear) |
|
- | |||||
| 35 | 941776 | Cover Tube, Bottom |
|
- | |||||
| 36 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 36 | 488706 | Screw (repair) |
|
- | |||||
| 37 | 939957 | Wire Cover (rear) |
|
- | |||||
| 38 | 939961 | Rivet, Plastic (2) |
|
- | |||||
| 39 | 939960 | Wire Cover (front) |
|
- | |||||
| 40 | 944906 | Damper, Chiller |
|
- | |||||
| 41 | 983735 | Hole Plug (2) |
|
- |
