SELECT A DIAGRAM

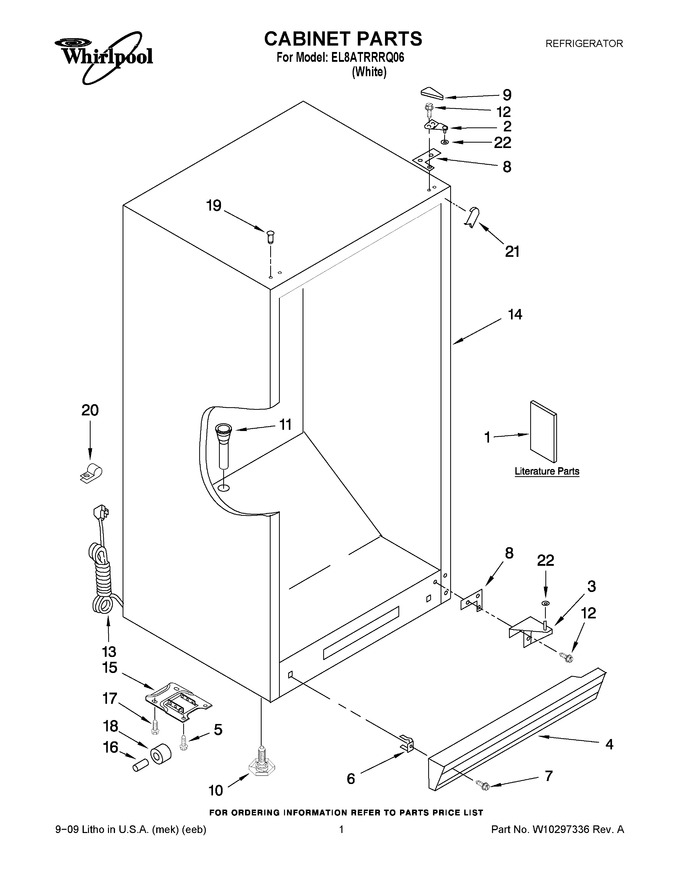

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10180511		Energy Guide/tag		Appelez-nous	-
1	8210433		Owners Manual		Appelez-nous	-
2	2-81016-105		Top Hinge (white)   (Replaces: 8210222)				$ 38.92
3	8210223		Bottom Hinge (white)		Appelez-nous	-
4	WP4-60461-005		Grille (includes 6 & 7) (white)   (Replaces: 8210290)				$ 105.73
5	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.50
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.35
7	WP489478		Screw   (Replaces: 4357243)				$ 7.36
8	4390489		Shim, Hinge				$ 6.57
9	4357279		Cover, Hinge (white)				$ 46.56
10	WP3-82710-001		Leg, Leveler   (Replaces: W10177675)			Immediately	$ 18.29
11	W10164544		Grommet, Drain		Appelez-nous	-
12	WP8204624		Screw   (Replaces: 4356830)				$ 15.73
13	8210302		Power Cord		Appelez-nous	-
14	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
15	8210265		Bracket, Roller		Appelez-nous	-
16	4390755		Axle				$ 13.86
17	8210266		Screw		Appelez-nous	-
18	8210210		Roller, Front		Appelez-nous	-
19	WP2189000		Plug   (Replaces: 4390596)			Immediately	$ 6.99
20	4357159		Clamp		Appelez-nous	-
21	W10296595		Filler, Corner		Appelez-nous	-
22	W10296592		Washer, Door- Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
