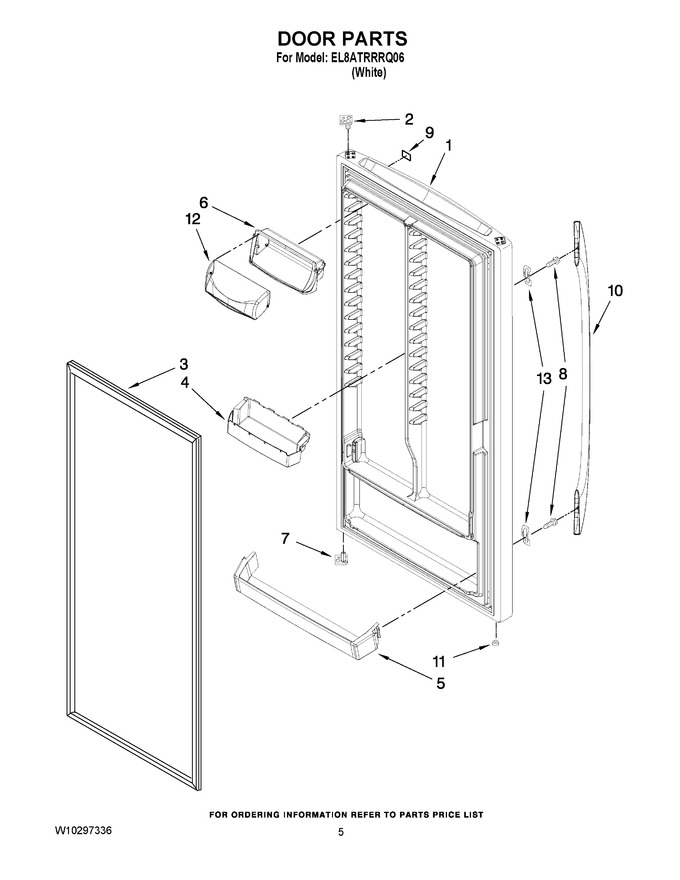

03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210413 | Exterior Door (includes Interior Liner) (white) |
|
$ 419.25 | |||||
| 2 | 8210401 | Stop, Door (white) |
|
- | |||||
| 3 | WP4-65151-002 | Gasket (white) (Replaces: 8210339) |
|
$ 339.42 | |||||
| 4 | W10179592 | Bin, Door |
|
- | |||||
| 5 | 8210379 | Rail, Door (lower) |
|
- | |||||
| 6 | 8210381 | Housing, Dairy Compartment |
|
- | |||||
| 7 | 8210400 | Stop, Door (bottom) (natural) |
|
- | |||||
| 8 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.57 | |||||
| 9 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 10 | 2313345W | Handle (white) |
|
- | |||||
| 11 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 12 | 8210382 | Door, Compartment |
|
- | |||||
| 13 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 32.90 |
