02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

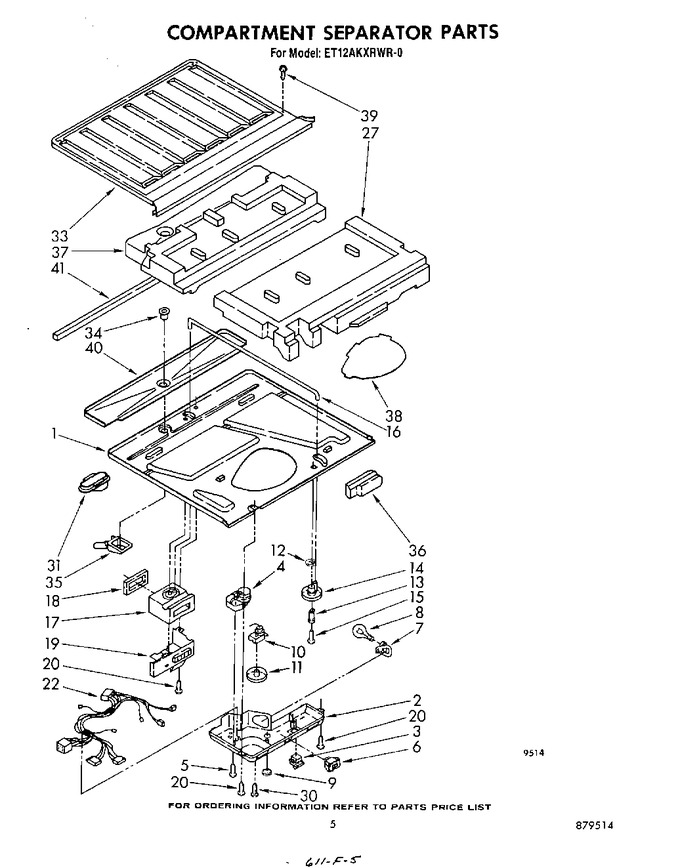

| 1 | 1108489 | Bottom, Compartment Separator |
|
- | |||||
| 2 | 1100111 | Control Box |
|
- | |||||
| 3 | W11384469 | Switch, Rocker Arm (Replaces: 1108112) |
|
Immediately | $ 35.18 | ||||
| 4 | W10822278 | Timer, Defrost (10 Hour) (Replaces: 943435) |
|
Immediately | $ 31.00 | ||||
| 5 | WP487353 | Screw, 6-20 X 1/2 (Replaces: 488693) |
|
$ 7.16 | |||||
| 6 | 938049 | Switch, Toggle |
|
- | |||||
| 7 | 4387478 | Socket Assembly (Replaces: 851067) |
|
Immediately | $ 104.10 | ||||
| 8 | W11679940 | Bulb, Light (Replaces: 946059) |
|
Immediately | $ 10.67 | ||||
| 9 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 10 | WP819470 | Thermostat Barrier Assembly (Replaces: 1108614) |
|
$ 148.46 | |||||
| 11 | 937144 | Knob, Thermostat |
|
- | |||||
| 12 | 489053 | Lockwasher |
|
- | |||||
| 13 | 937105 | Spacer, Knob |
|
- | |||||
| 14 | 935727 | Knob, Air Control |
|
- | |||||
| 15 | WP488163 | Screw, 8 X 1 (Replaces: 487534) |
|
$ 7.13 | |||||
| 16 | 1104579 | Rod, Connecting |
|
- | |||||
| 17 | 1108493 | Air Diffuser Assembly |
|
- | |||||
| 18 | 1108494 | Gasket, Air Diffuser |
|
- | |||||
| 19 | 1108522 | Cover, Air Diffuser |
|
- | |||||
| 20 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 22 | 1108491 | Wiring, Assembly Control Box |
|
- | |||||
| 27 | 1108496 | Insulation, Compartment |
|
- | |||||
| 30 | 488624 | Screw, 8 X 3/8 (2) Separator Front |
|
- | |||||
| 31 | 1108521 | Hood, Air Return (2) |
|
- | |||||
| 33 | 1108499 | Separator, Compartment (top) |
|
- | |||||
| 34 | 937359 | Drain Insert, Separator, |
|
- | |||||
| 35 | 937065 | Cup, Drain |
|
- | |||||
| 36 | 939056 | Rear Corner, Block |
|
- | |||||
| 37 | 1108497 | Insulation, Compartment Rear |
|
- | |||||
| 38 | 937227 | Heat Shield |
|
- | |||||
| 39 | WP488729 | Screw, 8-15 X 1/2 (4) (Replaces: 488992) |
|
Immediately | $ 7.45 | ||||
| 40 | 1108512 | Drain Pan |
|
- | |||||
| 41 | 1108513 | Gasket, Drain Pan |
|
- |
