02 - Cabinet
03 - Liner
04 - Compartment Separator

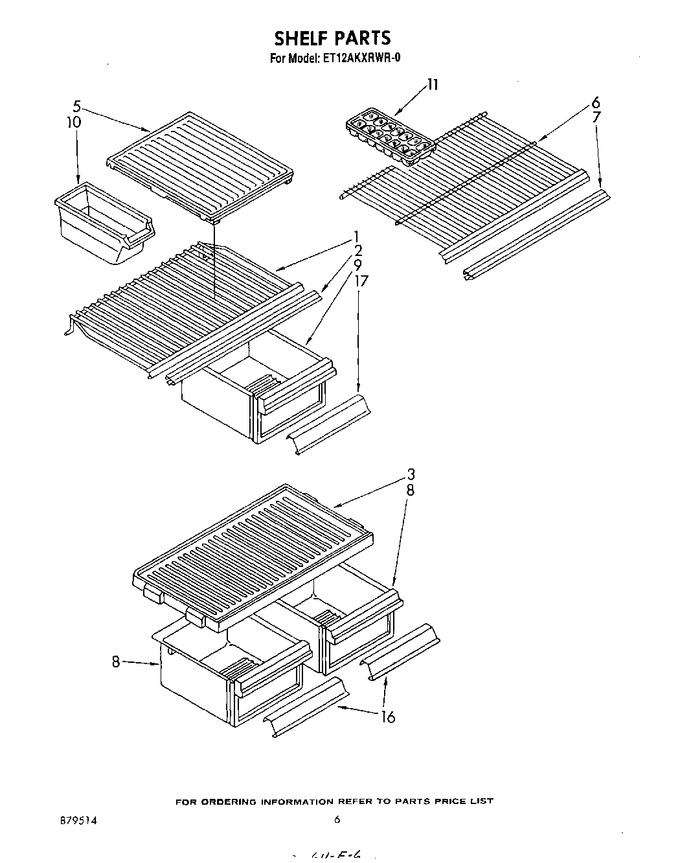

05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 946389 | Shelf, Pullout (3) |
|
- | |||||
| 2 | 1108549 | Trim, Shelf (front) |
|
- | |||||
| 3 | 1108550 | Cover, Crisper |
|
- | |||||
| 5 | 1105927 | Cover, Meat Pan |
|
- | |||||
| 6 | 1108552 | Shelf, Freezer |
|
- | |||||
| 7 | 1108554 | Trim, Shelf (front) |
|
- | |||||
| 8 | 1108571 | Pan, Crisper (2) |
|
- | |||||
| 9 | 1108704 | Pan, Meat |
|
- | |||||
| 10 | WP982704 | Container, Utility (Replaces: 1106048) |
|
$ 29.30 | |||||
| 11 | WP841180A | Tray, Ice (2) (Replaces: 841180) |
|
Immediately | $ 43.06 | ||||
| 16 | 1108572 | Overlay, Pan (2) |
|
- | |||||
| 17 | 937155 | Overlay, Pan |
|
- |
