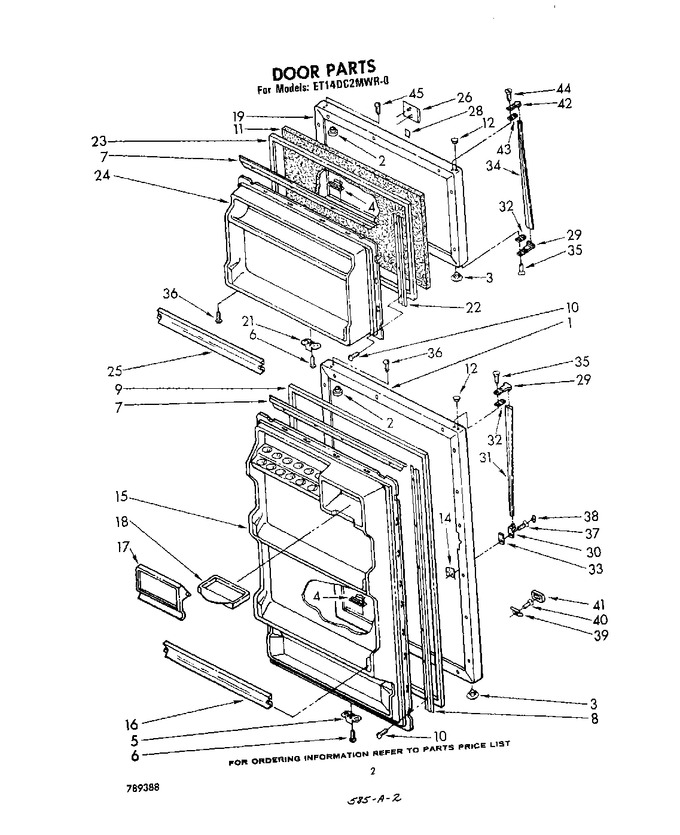

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door
03 - Cabinet
04 - Liner , Lit/optional
05 - Unit
06 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944096 | Refrigerator Door Panel (coffee) |
|
- | |||||
| 1 | 944095 | Refrigerator Door Panel (white) |
|
- | |||||
| 1 | 1100225 | Exterior, Door Panel (toast) |
|
- | |||||
| 1 | 1100226 | Exterior, Door Panel (platinum) |
|
- | |||||
| 1 | 944099 | Refrigerator Door Panel (almond) |
|
- | |||||
| 1 | 944097 | Refrigerator Door Panel (harvest Gold) |
|
- | |||||
| 2 | 509929 | Cap, Hinge |
|
- | |||||
| 3 | 534927 | Hole Plug (2) |
|
- | |||||
| 4 | 943185 | Tap Plate |
|
- | |||||
| 5 | 944036 | Bracket, Door Stop |
|
- | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 6 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 7 | 935759 | Retainer Gasket, Top & Bottom (2) |
|
- | |||||
| 8 | 935760 | Retainer, Gasket Side (2) |
|
- | |||||
| 9 | 2188445A | Door Gasket, Magnetic (Replaces: 942287) |
|
$ 197.35 | |||||
| 9 | 2188445A | Door Gasket, Magnetic (platinum Model Only) (Replaces: 935761) |
|
$ 197.35 | |||||
| 10 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 11 | 876029 | Kit, Foam Slab |
|
- | |||||
| 12 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 12 | WP2212648 | Hole Plug (harvest Gold) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 12 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 12 | 989196 | Hole Plug (almond) |
|
- | |||||
| 12 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 12 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 14 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 15 | 1100233 | Interior Door Panel (platinum Model Only) (refrigerator) |
|
- | |||||
| 15 | 1100059 | Interior Door Panel (refrigerator) |
|
- | |||||
| 16 | 1100047 | Trim, Door Shelf |
|
- | |||||
| 17 | 946998 | Compartment Door, Butter |
|
- | |||||
| 18 | 520747 | Tray, Butter |
|
- | |||||
| 19 | 1100227 | Freezer Door Panel (also Order Item 11) (toast) |
|
- | |||||
| 19 | 1100228 | Freezer Door Panel (also Order Item 11) (platinum) |
|
- | |||||
| 19 | 944101 | Freezer Door Panel (also Order Item 11) (white) |
|
- | |||||
| 19 | 944102 | Freezer Door Panel (also Order Item 11) (coffee) |
|
- | |||||
| 19 | 944103 | Freezer Door Panel (also Order Item 11) (harvest Gold) |
|
- | |||||
| 19 | 944105 | Freezer Door Panel (also Order Item 11) (almond) |
|
- | |||||
| 21 | 944035 | Bracket, Door Stop |
|
- | |||||
| 22 | 935775 | Retainer, Gasket Side (freezer) |
|
- | |||||
| 23 | WP2188456A | Door Gasket, Magnetic (platinum Model Only) (Replaces: 937001) |
|
$ 258.49 | |||||
| 23 | WP2188456A | Door Gasket, Magnetic (Replaces: 942289) |
|
$ 258.49 | |||||
| 24 | 1100062 | Interior Door Panel (freezer) |
|
- | |||||
| 24 | 1100131 | Interior Door Panel (freezer) (platinum Model Only) |
|
- | |||||
| 25 | 1100117 | Trim, Door Shelf |
|
- | |||||
| 26 | 945119 | Nameplate |
|
- | |||||
| 28 | 991259 | Tape Strip |
|
- | |||||
| 29 | 943182 | Handle End (for Platinum Model Only) |
|
- | |||||
| 29 | 819342 | Handle, End (Replaces: 1101861) |
|
Immediately | $ 51.31 | ||||
| 30 | 819342 | Handle, End (Replaces: 1101862) |
|
Immediately | $ 51.31 | ||||
| 30 | WP2183139 | Handle, End (for Platinum Model Only) (Replaces: 983542) |
|
Immediately | $ 51.98 | ||||
| 31 | 1104738 | Handle, Center (for Platinum Model Only) |
|
- | |||||
| 31 | 982946 | Handle, Center |
|
- | |||||
| 32 | 943188 | Spacer |
|
$ 7.80 | |||||
| 33 | 992872 | Shim, Bottom |
|
- | |||||
| 34 | 1104740 | Handle, Center (for Platinum Model Only) |
|
- | |||||
| 34 | 982978 | Handle, Center |
|
- | |||||
| 35 | WP488920 | Screw, 8 X 5/8 (2) (Replaces: 488920) |
|
$ 7.98 | |||||
| 35 | 488923 | Screw (repair) |
|
- | |||||
| 36 | 488930 | Screw (repair) |
|
- | |||||
| 36 | WP8281206 | Screw, 8-15 X 1/2 (2) (Replaces: 489028) |
|
$ 8.37 | |||||
| 37 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 8.28 | ||||
| 38 | WP1101634 | Screw Cover, Handle (Replaces: 1101864) |
|
$ 9.68 | |||||
| 38 | WP1101634 | Screw, Cover Handle (for Platinum Model Only) (Replaces: 981182) |
|
$ 9.68 | |||||
| 39 | 843213 | Clip, Medallion |
|
- | |||||
| 40 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 41 | 1100195 | Medallion (platinum) |
|
- | |||||
| 41 | 989901 | Medallion (coffee) |
|
- | |||||
| 41 | 1100194 | Medallion (toast) |
|
- | |||||
| 41 | 848382 | Medallion (white) |
|
- | |||||
| 41 | 989904 | Medallion (almond) |
|
- | |||||
| 41 | 989903 | Medallion (harvest Gold) |
|
- | |||||
| 42 | WP2191882 | Handle, End (for Platinum Model Only) (Replaces: 943184) |
|
$ 62.77 | |||||
| 42 | 819342 | Handle, End (Replaces: 1101863) |
|
Immediately | $ 51.31 | ||||
| 43 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 44 | WP488920 | Screw (repair) (Replaces: 488926) |
|
$ 7.98 | |||||
| 45 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 45 | 488930 | Screw (repair) |
|
- |
