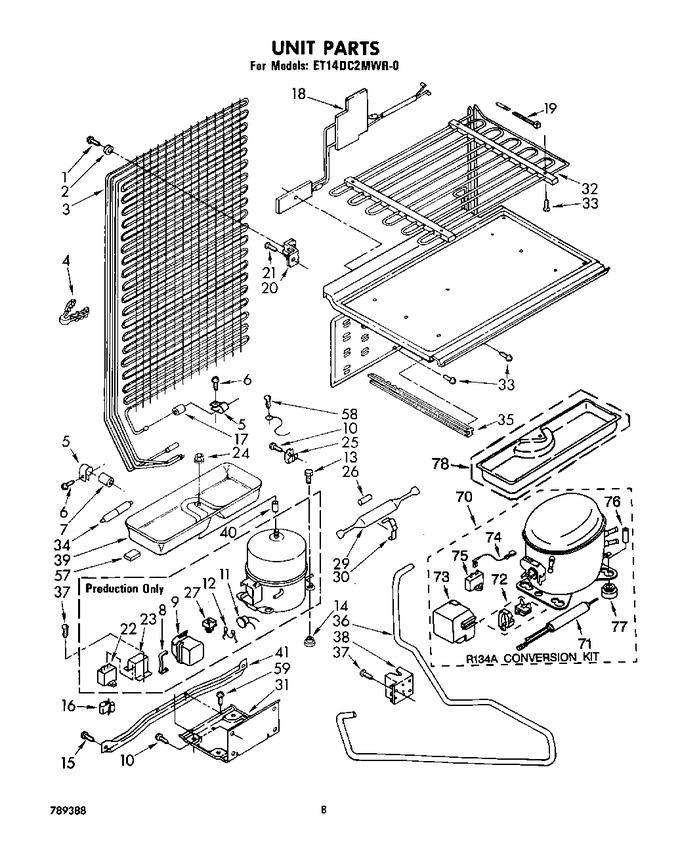

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 3/4 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1108058		Condenser & Precooler Assembly		Appelez-nous	-
4	942739		Tube Clip (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
7	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
8	943322		Strap		Appelez-nous	-
9	1105055		Terminal Cover		Appelez-nous	-
10	WP489069		Screw,8x1/2 (2)   (Replaces: 488480)			Immediately	$ 8.40
11	1105290		Overload		Appelez-nous	-
12	943320		Overload Spring		Appelez-nous	-
13	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
14	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	945593		Dampener		Appelez-nous	-
18	1101093		Defrost Heater		Appelez-nous	-
19	851095		Strap (2)		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	WP489069		Screw, 8 X 7/8   (Replaces: 488480)			Immediately	$ 8.40
22	WPW10662129		Running Capacitor   (Replaces: 1100804)			Immediately	$ 58.86
23	1108016		Cover, Running Capacitor		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 12.85
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	945507		Relay		Appelez-nous	-
29	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
30	547637		Clamp		Appelez-nous	-
31	942860		Unit, Plate		Appelez-nous	-
32	1100912		Evaporator Assembly		Appelez-nous	-
33	486214		Screw 8-15 X 1/2		Appelez-nous	-
34	1105248		Muffler		Appelez-nous	-
35	940115		Gasket, Evaporator Lower R.s.		Appelez-nous	-
35	940116		Gasket, Evaporator Lower L.s.		Appelez-nous	-
36	1105191		Heat Exchanger		Appelez-nous	-
37	W11624204		Screw, 8-32 X 3/8   (Replaces: 486194)				$ 14.72
38	937068		Box, Junction		Appelez-nous	-
39	935781		Tray, Evaporator		Appelez-nous	-
40	938275		Spacer		Appelez-nous	-
41	945448		Unit, Rail		Appelez-nous	-
57	301774		Pad, Sound		Appelez-nous	-
58	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
59	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
70	876765		Tube Kit			Immediately	$ 90.65
70	482801		Install Kit & Item 78				$ 119.50
70	4388007		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) Also Order		Appelez-nous	-
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387913		Overload/relay Asy.   (Replaces: 4387766)			Immediately	$ 84.39
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	482278		Start Kit		Appelez-nous	-
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
77	978030		Valve, Access (3/4``)				$ 137.25
77	876764		Valve, Access(3/16``)			Immediately	$ 95.92
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
77	978026		Valve, Access (5/16``)			Immediately	$ 134.49
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
77	978028		Valve, Access (1/2)		Appelez-nous	-
77	978029		Valve Access (5/8``)				$ 93.85
