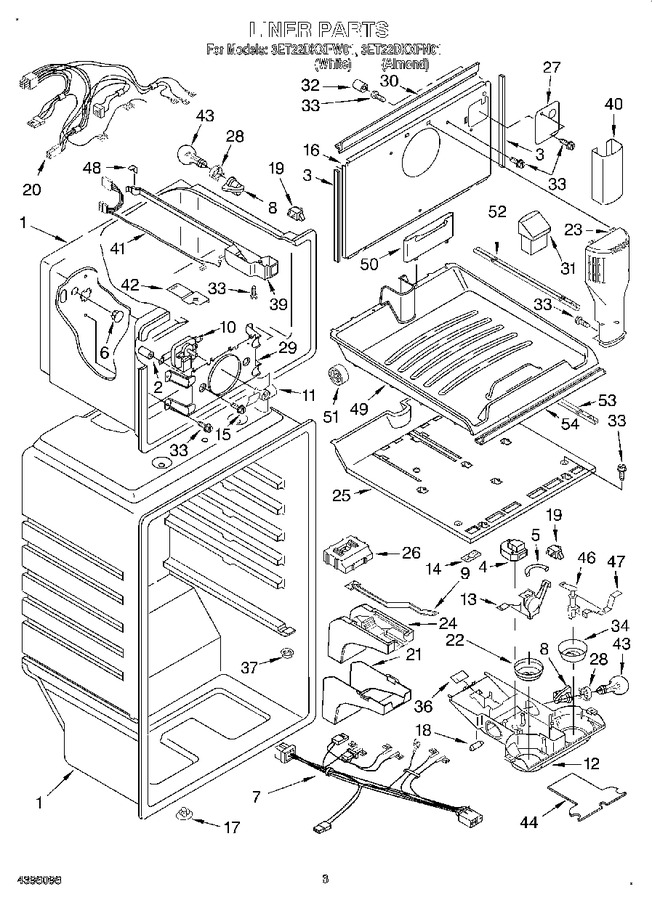

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189269)				$ 28.12
4	WP2166867		Timer, Defrost   (Replaces: 2166867)				$ 187.73
5	WP2196003		Thermostat Tube Barrier   (Replaces: 549512)				$ 8.35
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
7	2200828		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
9	2179858		Damper, Air		Appelez-nous	-
10	2183828		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 107.61
12	2179790		Control Box		Appelez-nous	-
13	4387562		Thermostat Assembly (includes Items 5, 18, & 36)   (Replaces: 2198890)			Immediately	$ 333.13
14	2176341		Clip, Defrost Timer		Appelez-nous	-
15	489412		Screw		Appelez-nous	-
16	2189833		Cover-evaporator		Appelez-nous	-
17	2166844		Plug		Appelez-nous	-
18	2163802		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
20	2195657		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	2193455		Knob, Thermostat		Appelez-nous	-
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 131.03
25	2190589		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 2190688)				$ 47.22
28	WP2175210		Shroud   (Replaces: 2169193)				$ 86.74
29	2198901		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189270)				$ 28.12
31	2174629		Air Return & Foil Assembly		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.67
33	WP489478		Screw   (Replaces: 489478)				$ 8.18
34	2176297		Knob, Damper		Appelez-nous	-
36	WP2205079		Seal, Rear Thermostat   (Replaces: 2172532)				$ 10.01
37	WP2210509		Valve, Release   (Replaces: 2171931)				$ 99.15
39	2184633		Housing Base		Appelez-nous	-
40	2179712		Sleeve		Appelez-nous	-
41	2198892		Wiring Harness, Freezer Light		Appelez-nous	-
42	2193491		Electrical Shield, Freezer Light				$ 5.81
43	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
44	2190519		Shield		Appelez-nous	-
46	2179859		Post, Damper		Appelez-nous	-
47	2163810		Bracket, Damper Knob				$ 6.01
48	2166284		Gasket, Rear				$ 6.06
49	2189449		Pullout, Freezer Floor		Appelez-nous	-
50	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
51	2176246		Roller, Slide		Appelez-nous	-
52	2179713		Side Support, Floor Assembly		Appelez-nous	-
53	2179714		Center Support, Floor Assembly		Appelez-nous	-
54	2189992		Trim, Pullout Freezer Floor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
