SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional

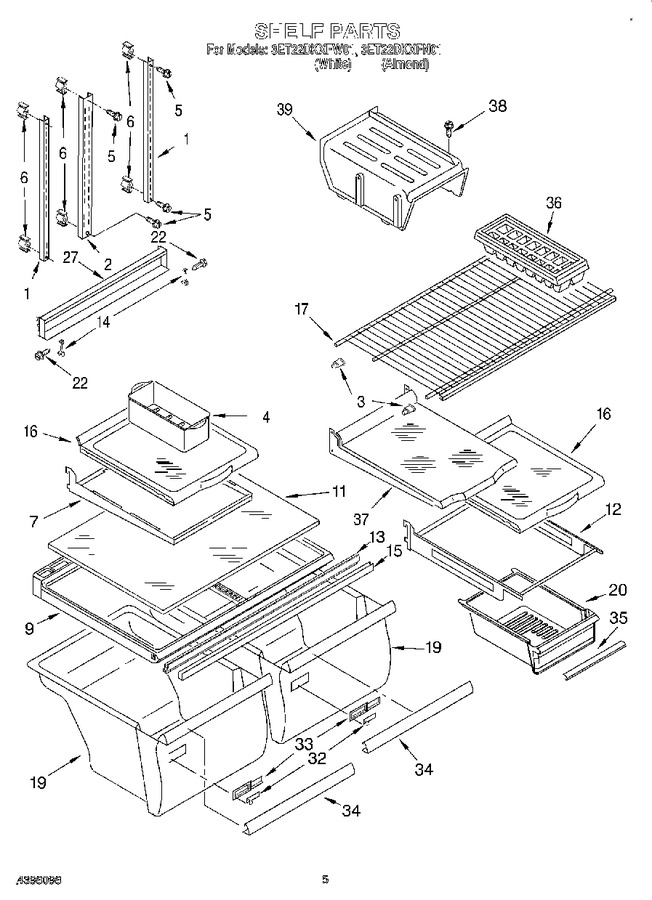

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	2189314		Screw Support		Appelez-nous	-
7	2174447		Frame Assembly, Shelf (2)				$ 79.10
9	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 279.10
11	WP2176225		Glass, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2179717		Frame Assembly, Meat Shelf		Appelez-nous	-
13	2172684		Gasket, Crisper Cover		Appelez-nous	-
14	2169608		Hook, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	WP999520		Shelf Assembly, Spillguard (2)   (Replaces: 2195501)				$ 273.62
17	2184667		Shelf, Freezer		Appelez-nous	-
19	W10854037		Pan, Crisper Includes 32,33,34.   (Replaces: 2201025)			Immediately	$ 179.19
20	WP2218132K		Pan, Meat Includes No.35.   (Replaces: 2201032)			Immediately	$ 171.43
22	489419		Screw		Appelez-nous	-
27	2176241		Track Assembly, Shelf		Appelez-nous	-
32	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
33	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.81
34	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 86.67
35	2176357		Trim, Meat Pan				$ 33.74
36	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
37	2195349		Shelf Assembly, Spillguard		Appelez-nous	-
38	WP489478		Screw   (Replaces: 489478)				$ 8.18
39	2183995		Shelf, Ice Tray		Appelez-nous	-
100	2199049		Featurepak (includes 4,12, 14,16,20,22,27, 37) Also See Ref. & Frz Door Pages.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
