Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2197743W Freezer Door Appelez-nous -
3 2194776W Retainer, Insert Appelez-nous -
5 2194778W End Cap (2) Appelez-nous -
6 WP2182181 Thimble, Top   (Replaces: 2182181) Special Order $ 8.15

9 WP489463 Screw   (Replaces: 489463) Special Order $ 8.25

10 2159072 Door, Gasket Magnetic Special Order $ 323.60

14 WP2156021 Trim, Door Shelf (4)   (Replaces: 2204070) Special Order $ 66.43

17 2198271 Harness, Door Appelez-nous -
18 WPW10307490 Trim, Door Shelf   (Replaces: 2209680) In-Stock Immediately $ 24.27

19 WP489128 Screw   (Replaces: 488500) Special Order $ 11.40

21 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

25 WP2182179 Door Closer, Upper Cam   (Replaces: 2182179) In-Stock Immediately $ 7.20

26 WP2154473 Housing Connector   (Replaces: 2162412) Special Order $ 24.83

27 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

28 2195950 Bracket, Door Stop Special Order $ 5.84

29 2173830 Insert, Handle Appelez-nous -
30 WP3400852 Screw   (Replaces: 3400852) Special Order $ 10.33


    View Diagram in Separate Window     Print Icon   Print Part List

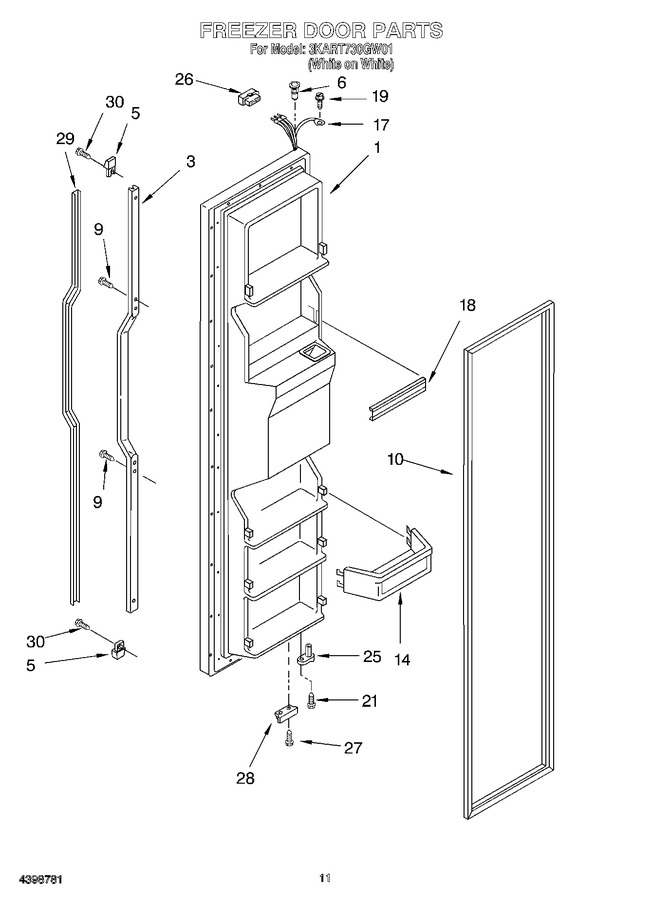

Diagram for 3KART730GW01
