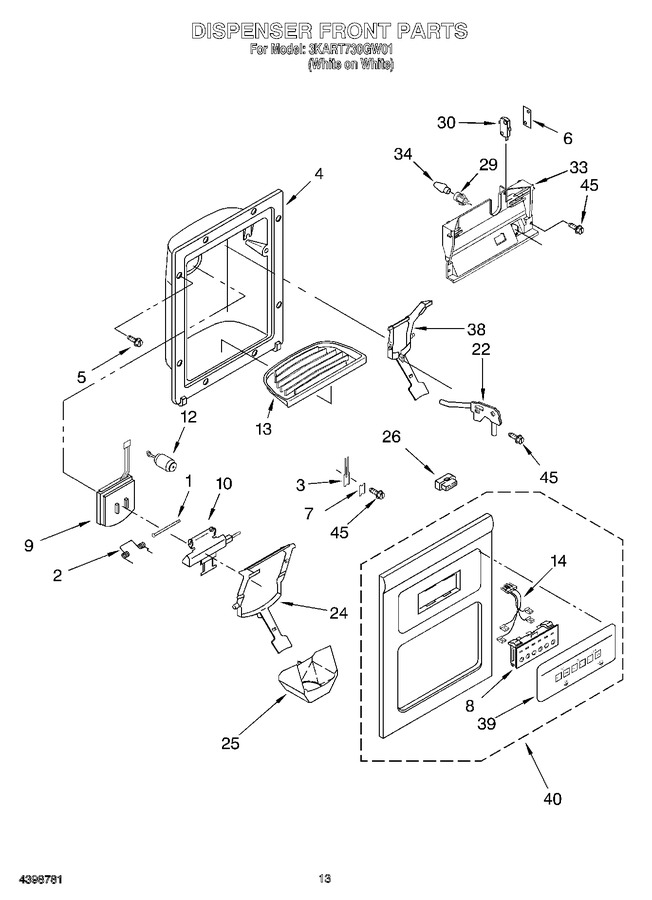

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 2 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 87.40 | |||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | 2180220 | Housing, Dispenser |
|
- | |||||
| 5 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 6 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 7 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 8 | WP2180236 | Switch Assembly (also Order Item No. 39) (Replaces: 2180236) |
|
$ 288.00 | |||||
| 9 | WP2180353 | Door, Ice (Replaces: 2180351) |
|
Immediately | $ 26.83 | ||||
| 10 | 2206423 | Door Mechanism Assembly |
|
- | |||||
| 12 | 2205686 | Mechanism Delay |
|
- | |||||
| 13 | 2180323 | Grille, Overflow |
|
$ 30.68 | |||||
| 14 | 2311650 | Wire Assembly (Replaces: 2196199) |
|
$ 94.16 | |||||
| 22 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2209718) |
|
$ 140.84 | |||||
| 24 | 2180256 | Lever Assembly, Ice Dispenser |
|
- | |||||
| 25 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 26 | 2169477 | Connector |
|
- | |||||
| 29 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 30 | WP2162361 | Switch (4) (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 33 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 26.97 | ||||
| 34 | 989331 | Bulb, Light |
|
- | |||||
| 38 | WPW10152858 | Lever Assembly, Water Dispenser (Replaces: 2180265) |
|
Immediately | $ 109.83 | ||||
| 39 | 2187029W | Overlay, Front Cover |
|
- | |||||
| 40 | 2197745W | Front Cover Assembly (includes Items 8, 14 & 39) |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 |
