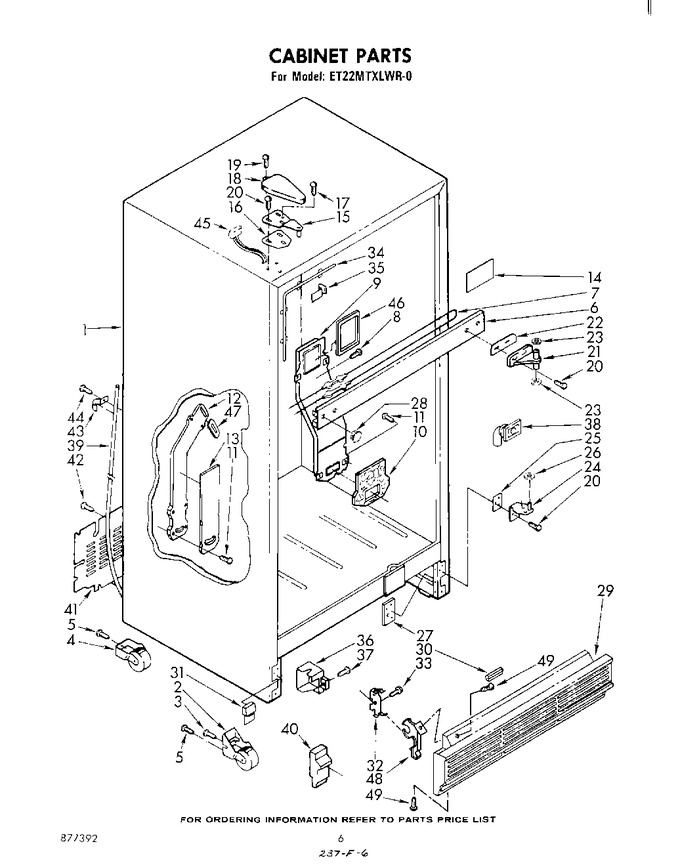

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 37.96
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	836067		Center Rail (white)		Appelez-nous	-
6	989908		Center Rail (coffee)		Appelez-nous	-
6	989909		Center Rail (golden Harvest)		Appelez-nous	-
6	989910		Center Rail (new Avocado)		Appelez-nous	-
6	989911		Center Rail (almond)		Appelez-nous	-
7	989256		Heater, Mullion		Appelez-nous	-
8	487470		Screw (repair)		Appelez-nous	-
8	488624		Screw, 8 X 3/8		Appelez-nous	-
9	945264		Air Duct		Appelez-nous	-
10	945265		Spacer, Outlet Air Duct		Appelez-nous	-
11	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 7.71
12	942227		Air Duct, Meat Pan		Appelez-nous	-
13	942232		Spacer, Meat Pan Outlet		Appelez-nous	-
14	985316		Seal, Strip		Appelez-nous	-
15	983608		Hinge, Top		Appelez-nous	-
16	836192		Shim, Hinge		Appelez-nous	-
17	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 6.37
18	987191		Hinge Cover (white)		Appelez-nous	-
18	989886		Hinge Cover (new Avocado)		Appelez-nous	-
18	989887		Hinge Cover (almond)		Appelez-nous	-
18	989885		Hinge Cover (golden Harvest)		Appelez-nous	-
18	989884		Hinge Cover (coffee)		Appelez-nous	-
19	488915		Screw, 6-32 X 1/2		Appelez-nous	-
20	488949		Screw (repair)		Appelez-nous	-
20	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.70
21	836153		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP488296		Washer, 11/64 Nylon   (Replaces: 488296)			Immediately	$ 6.80
24	836686		Hinge (bottom)		Appelez-nous	-
25	836196		Shim, Hinge		Appelez-nous	-
26	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.12
27	836162		Tap Plate		Appelez-nous	-
28	835974		Hole, Plug (white)		Appelez-nous	-
28	989881		Hole Plug (coffee)		Appelez-nous	-
28	989882		Hole Plug (golden Harvest)		Appelez-nous	-
28	989883		Hole Plug (new Avocado)		Appelez-nous	-
28	989193		Hole, Plug (almond)		Appelez-nous	-
29	944234		Exterior, Grille (coffee)		Appelez-nous	-
29	944233		Exterior, Grille (white)		Appelez-nous	-
29	944235		Exterior, Grille (golden Harvest)		Appelez-nous	-
29	944236		Exterior Grille (new Avocado)		Appelez-nous	-
29	944237		Exterior, Grille (almond)		Appelez-nous	-
30	546131		Bumper, Grille		Appelez-nous	-
31	989930		Corner, Filler Grille (new Avocado)		Appelez-nous	-
31	989928		Corner, Filler Grille (coffee)		Appelez-nous	-
31	989929		Corner, Filler Grille (golden Harvest)		Appelez-nous	-
31	838535		Corner, Filler Grille (white)		Appelez-nous	-
31	989931		Corner, Filler Grille (almond)		Appelez-nous	-
32	989068		Clip, Grille		Appelez-nous	-
33	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
34	934447		Heater, Stile		Appelez-nous	-
35	935663		Clip, Heater		Appelez-nous	-
36	549948		Box, Junction		Appelez-nous	-
37	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.45
38	841687		Drain Fitting		Appelez-nous	-
39	8316810		Drain, Tube   (Replaces: 982894)				$ 113.15
40	836372		Insert, Air Baffle		Appelez-nous	-
41	850459		Cover, Unit Compartment		Appelez-nous	-
42	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.25
43	836077		Clamp, Tube		Appelez-nous	-
44	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.56
45	936183		Connector Receptacle		Appelez-nous	-
46	945047		Air Duct, Seal		Appelez-nous	-
47	945046		Air Duct, Seal Meat Pan		Appelez-nous	-
48	WP944224		Grille Support   (Replaces: 944224)				$ 7.15
49	489085		Screw, 8-22 X 5/16		Appelez-nous	-
