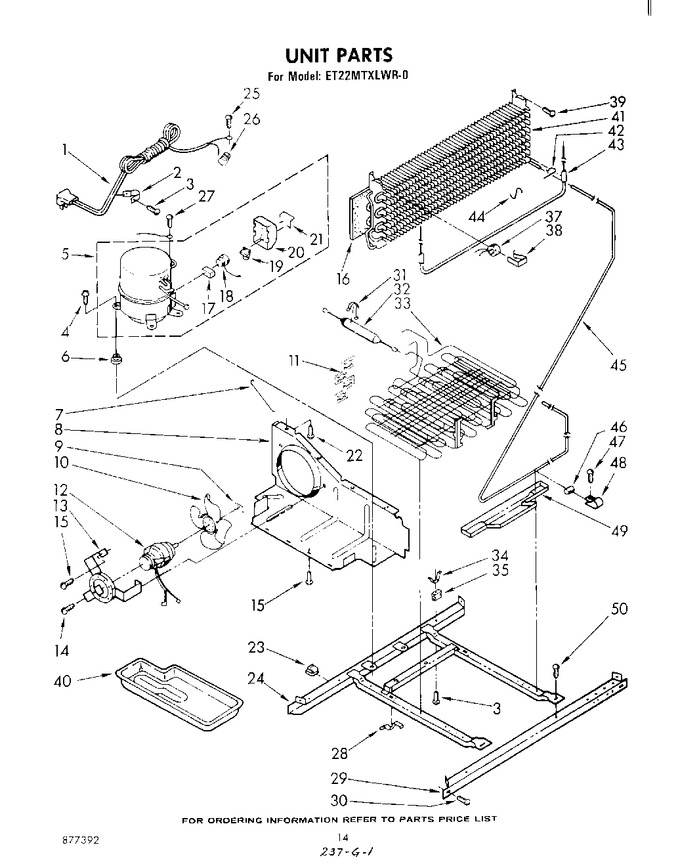

08 - Unit


09 - Liner , Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp				$ 12.65
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	876639		Compressor Kit (includes Illus. 17, 18, 19, 20 & 21)		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
7	850156		Guard, Fan		Appelez-nous	-
8	850391		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 7.59
10	989524		Fan		Appelez-nous	-
11	987210		Spacer Condenser		Appelez-nous	-
12	R1211		Motor   (Replaces: 851618)				$ 131.05
13	548695		Bracket		Appelez-nous	-
14	488868		Screw (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	981736		Baffle, Air		Appelez-nous	-
17	547272		Bumper		Appelez-nous	-
18	941583		Overload		Appelez-nous	-
19	4318083		Relay (alternate)   (Replaces: 938264)				$ 116.28
19	938263		Relay		Appelez-nous	-
20	549945		Case		Appelez-nous	-
21	531318		Spring		Appelez-nous	-
22	488978		Screw, 8-15 X 3/8		Appelez-nous	-
23	548745		Clip, Wire (2)		Appelez-nous	-
24	936079		Frame		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Connector Wire		Appelez-nous	-
27	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	548662		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Drier   (Replaces: 978246)			Immediately	$ 51.42
33	481851		Condenser & Precooler		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	548737		Grommet (4)		Appelez-nous	-
36	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 488687)			Immediately	$ 13.28
37	WP4387489		Bimetal, Defrost   (Replaces: 989685)				$ 98.09
38	513584		Clamp		Appelez-nous	-
39	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 13.28
40	849331		Tray, Evaporator		Appelez-nous	-
41	989301		Evaporator		Appelez-nous	-
42	850721		Clip, Heater (2)		Appelez-nous	-
43	992911		Heater, Defrost		Appelez-nous	-
44	851358		Support, Heater		Appelez-nous	-
45	941693		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 20.00
48	510716		Clamp (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	978030		Valve, Access (3/4``)				$ 123.53
50	978026		Valve, Access (5/16``)			Immediately	$ 121.04
50	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
50	978028		Valve, Access (1/2)		Appelez-nous	-
50	978029		Valve Access (5/8``)				$ 93.85
50	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
