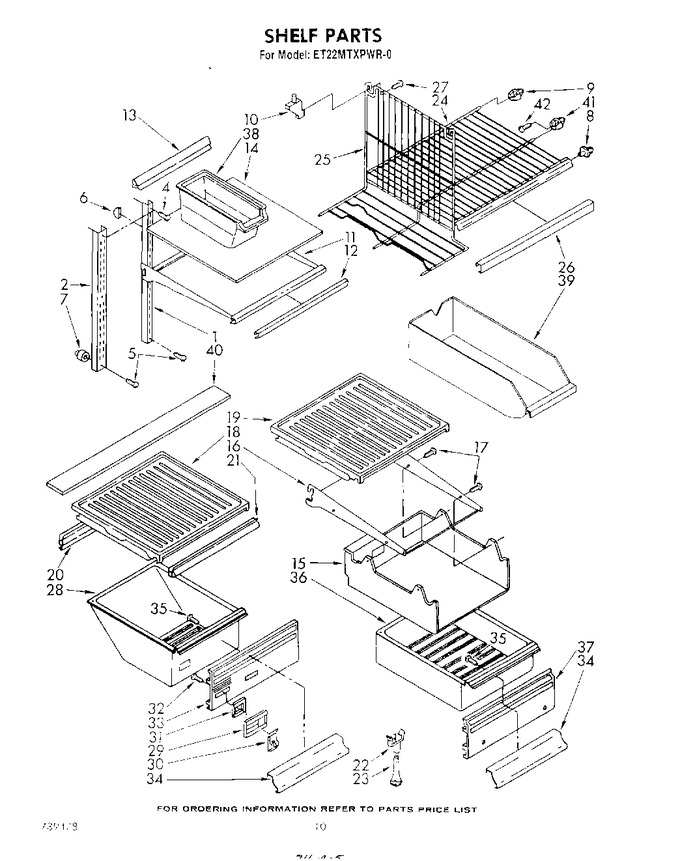

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	934267		Shelf, Ladder (2)		Appelez-nous	-
2	936230		Shelf, Ladder Center		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	520965		Screw, Support Ladder				$ 28.22
7	520959		Screw Support, Center Ladder		Appelez-nous	-
8	529758		Shelf, Stud		Appelez-nous	-
9	523264		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
10	839213		Stud				$ 265.64
11	936381		Shelf, Cantilever		Appelez-nous	-
12	845610		Trim, Shelf		Appelez-nous	-
13	985083		Reflector, Cantilever		Appelez-nous	-
14	1106047		Glass, Cantilever		Appelez-nous	-
15	942225		Meat, Pan Housing		Appelez-nous	-
16	942956		Cantilever, Pan Shelf		Appelez-nous	-
17	489085		Screw, 8-22 X 5/16 (4)		Appelez-nous	-
18	1110200		Pan Slide & Cover (2)		Appelez-nous	-
19	1110204		Pan Slide & Cover (meat)		Appelez-nous	-
20	982158		Crisper Gasket, Rear		Appelez-nous	-
21	983114		Crisper Gasket, Front		Appelez-nous	-
22	848562		Support, Crisper Cover				$ 24.30
23	836410		Post, Cripser Cover				$ 5.84
24	942243		Shelf, Freezer		Appelez-nous	-
25	942245		Divider, Shelf		Appelez-nous	-
26	942955		Trim, Shelf Front		Appelez-nous	-
27	WP98165		Screw, 8 X 1/2   (Replaces: 489088)				$ 7.71
28	942248		Pan, Crisper		Appelez-nous	-
29	942234		Housing, Humidity Control		Appelez-nous	-
30	942235		Slide Control		Appelez-nous	-
31	942236		Seal, Control		Appelez-nous	-
32	489041		Screw, 6-19 X 7/16		Appelez-nous	-
33	1109037		Front Cover, Crisper		Appelez-nous	-
34	984749		Overlay, Front Cover		Appelez-nous	-
35	488132		Screw (repair)		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.45
36	849020		Pan, Meat		Appelez-nous	-
37	1110206		Front Cover, Meat		Appelez-nous	-
38	WP982704		Container, Utility   (Replaces: 1106048)				$ 29.30
39	1101205		Ice Cube Pan		Appelez-nous	-
40	935242		Crisper, Light Lens		Appelez-nous	-
41	990261		Shelf, Saddle		Appelez-nous	-
42	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 7.45
