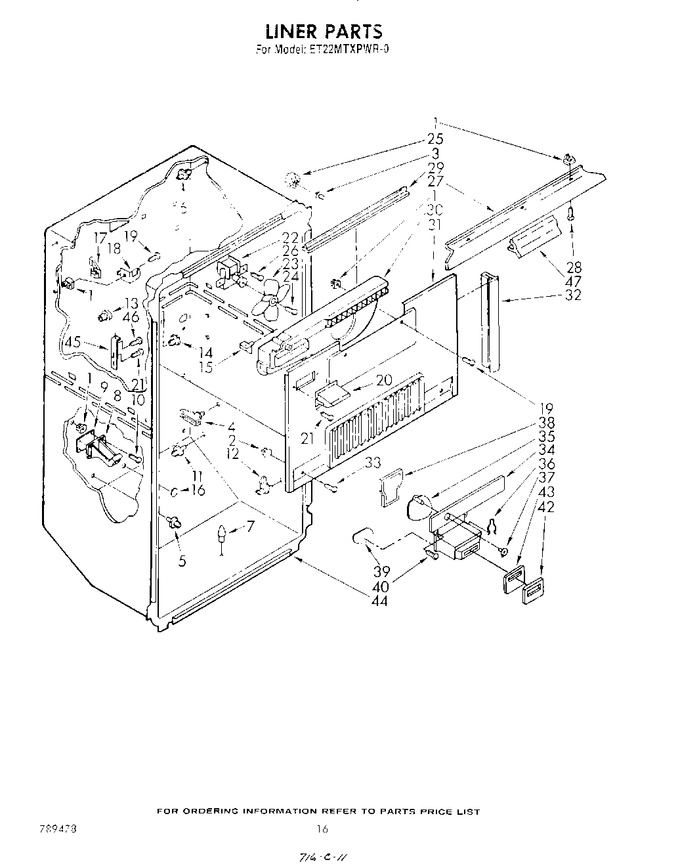

SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator


04 - Cabinet


05 - Breaker And Partition


06 - Shelf


07 - Ice Maker


08 - Unit


09 - Liner , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	848445		Grommet		Appelez-nous	-
3	845722		Screw, Grommet		Appelez-nous	-
4	935243		Stud, Light Lens		Appelez-nous	-
5	521516		Shelf, Stud		Appelez-nous	-
6	526383		Stud		Appelez-nous	-
7	836409		Grommet, Crisper Cover		Appelez-nous	-
8	935241		Crisper Cover, Support Rear		Appelez-nous	-
9	935911		Spacer, Support Rear		Appelez-nous	-
10	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 13.28
11	982281		Shelf Stud		Appelez-nous	-
12	981443		Shelf Stud		Appelez-nous	-
13	538449		Screw Grommet		Appelez-nous	-
14	509108		Stud		Appelez-nous	-
15	836374		Retainer, Stud		Appelez-nous	-
16	519890		Hole, Plug		Appelez-nous	-
17	850208		Retainer, Plug		Appelez-nous	-
18	842825		Receptacle, Bracket		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
20	988479		Air Duct, Extension		Appelez-nous	-
21	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.45
22	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 83.12
23	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 83.03
24	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
25	531933		Grommet				$ 5.70
26	WP488488		Screw, 8 X 15/16   (Replaces: 488488)				$ 7.67
27	944297		Baffle, Liner Top		Appelez-nous	-
28	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.56
29	984497		Sealing Gasket		Appelez-nous	-
30	988474		Scroll, Fan		Appelez-nous	-
31	937712		Cover, Evaporator		Appelez-nous	-
32	991074		Gasket, Evaporator Cover		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.45
34	1110203		Control Panel, Meat Pan		Appelez-nous	-
35	942228		Damper Control		Appelez-nous	-
36	942959		Retainer, Spring		Appelez-nous	-
37	837445		Knob, Control		Appelez-nous	-
38	942231		Seal, Control Panel		Appelez-nous	-
39	942229		Damper, Foam Pad		Appelez-nous	-
40	WP489069		Screw, 8 X 1/2   (Replaces: 488764)			Immediately	$ 7.56
42	943024		Backup Plate		Appelez-nous	-
43	943023		Seal, Control Panel		Appelez-nous	-
44	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
45	983861		Support, Icemaker		Appelez-nous	-
46	W11693756		Screw, 8 X 5/8   (Replaces: 487582)			Immediately	$ 13.28
47	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
47	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
47	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
47	833938		Kit, Terminal Connector				$ 7.62
47	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
47	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
47	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
47	944298		Extension, Baffle		Appelez-nous	-
47	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
47	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
47	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
47	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
47	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
47	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
47	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
47	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
47	799908		Silicone (spray)		Appelez-nous	-
47	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
47	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
47	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
47	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
47	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
47	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
47	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
47	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
47	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
47	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
47	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT789478		List, Repair Parts		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	LIT1110226		Care & Use Guide		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
	LIT1110228		Energy Label		Appelez-nous	-
	LIT946607		Service & Wiring Sheet		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11

    View Diagram in Separate Window       Print Part List
