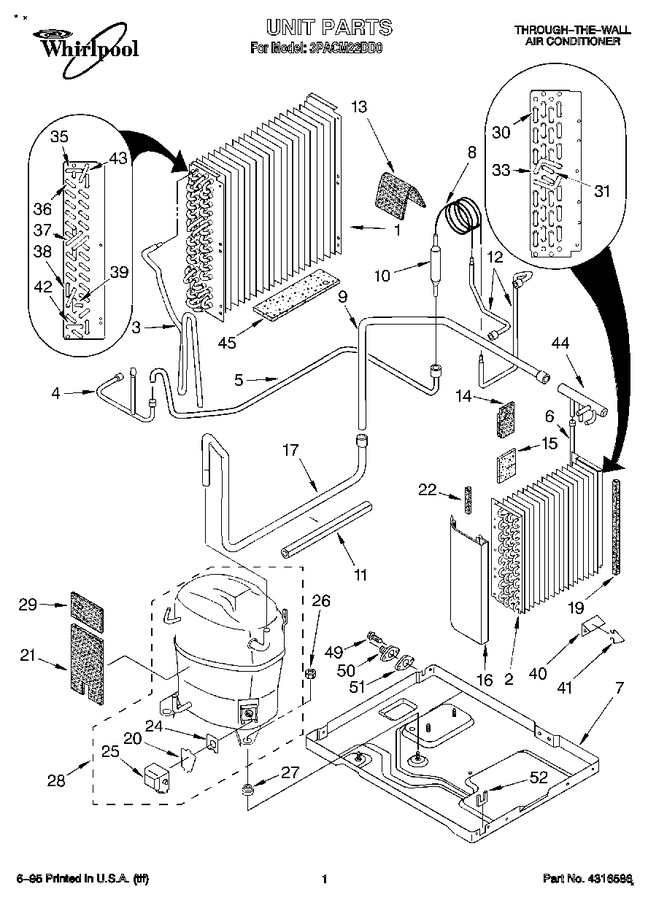

SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow


03 - Cabinet


04 - Control Module


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180261		Condenser		Appelez-nous	-
2	1180995		Evaporator		Appelez-nous	-
3	1180375		Tube, Discharge		Appelez-nous	-
4	1180287		Tube, Process		Appelez-nous	-
5	1180290		Tube, Wet Loop		Appelez-nous	-
6	1180996		Tube, Outlet (row 1)		Appelez-nous	-
6	1180997		Tube, Outlet (row 2)		Appelez-nous	-
7	1180243		Base		Appelez-nous	-
8	1180572		Tube, Restrictor (4)		Appelez-nous	-
9	1180610		Tube, Suction (evaporator)		Appelez-nous	-
10	1180376		Strainer		Appelez-nous	-
11	1162321		Dampener		Appelez-nous	-
12	1180510		Tube, Inlet (row 3)		Appelez-nous	-
12	1180511		Tube, Inlet (row 4)		Appelez-nous	-
12	1181056		Tube, Inlet (top Row 3)		Appelez-nous	-
12	1180999		Tube, Inlet (top Row 4)		Appelez-nous	-
13	1162616		Seal, Anti-rub		Appelez-nous	-
14	1181062		Seal, Suction Tube		Appelez-nous	-
15	1181064		Seal, Inlet Tube		Appelez-nous	-
16	1180289		Cover, Hair Pin		Appelez-nous	-
17	1180613		Tube, Suction/compressor		Appelez-nous	-
19	WP854334		Seal   (Replaces: 1180964)				$ 13.94
20	1161083		Retainer, Terminal Cover		Appelez-nous	-
21	1180858		Seal (compressor)		Appelez-nous	-
22	1180971		Seal (cover)		Appelez-nous	-
24	1161082		Gasket, Terminal Cover		Appelez-nous	-
25	1161076		Cover, Terminal		Appelez-nous	-
26	1180339		Nut, 8mm		Appelez-nous	-
27	1165973		Grommet, Compressor Mounting		Appelez-nous	-
28	1180324		Compressor		Appelez-nous	-
29	1180840		Pad, Dampening		Appelez-nous	-
30	855199		Bend, Return (24 Required)		Appelez-nous	-
31	997669		Bend, Return (2)		Appelez-nous	-
33	1180994		Tube, Crossover (2)		Appelez-nous	-
35	1156107		Bend, Return (3-way)		Appelez-nous	-
36	708532		Bend, Return (22 Required)		Appelez-nous	-
37	1156329		Bend, Return (2 Required)		Appelez-nous	-
38	708531		Bend, Return (3 Required)		Appelez-nous	-
39	1158685		Bend, Return (3-way)		Appelez-nous	-
40	1164141		Anticipator		Appelez-nous	-
41	475577		Clip, Anticipator		Appelez-nous	-
42	1156533		Bend, Return (1)		Appelez-nous	-
43	1158407		Bend, Return (2)		Appelez-nous	-
44	1180993		Manifold, Suction		Appelez-nous	-
45	1180926		Deflector, Water (foam)		Appelez-nous	-
49	1180668		Screw No.8 X 3/8		Appelez-nous	-
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1180387		Protector, Cord		Appelez-nous	-
	LIT1180435		Deluxe Remote Owners Manual		Appelez-nous	-
	LIT1181125		Owners Manual/installation Instructions		Appelez-nous	-
	LIT1180477		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
